The LA-10 compact high-powered curvilinear array loudspeaker is the mid-sized member of the powered line array family of loudspeakers. LA-10 brings the very high output and smooth, extended high-frequency response that is the powered line array family’s sonic signature to a smaller package with broad 90-degree horizontal coverage. This makes LA-10 ideal for applications that do not require quite as much power and throw distance as W-15 or where weight and size are a concern. LA-10 is suited to a wide variety of applications such as touring, rental, and fixed installation, and its sonic compatibility with LA-218 makes it an excellent component in a powered family system.
As with all Seer Audio ystems, LA-10 exhibits flat frequency and phase response across its wide operating range of 60 Hz to 18 kHz.With a peak output of 130 dB SPL, LA-10 sets a new standard for power-to-size ratio and raises the bar for performance in a compact curvilinear array system, whether it is on the road or fixed in one place. The speaker box and loudspeaker are used waterproof technics, it's suitable for outdoor place.
Model | LA-210C |
Frequency Response | 60Hz-18KHz |
Directivity Angle | H100°×V10° |
Impedance | 16 ohms/ 16 ohms(HF.MF) |
Long-term Power(RMS） | 240W/600W/(HF.MF) |
Power peak | 480W/1200W/5Min(HF.MF) |
Sensitivity | 118 dB /115 dB(HF.MF) |
Maximum SPL | 130dB /130dB(HF.MF) |
Connection | 2×NL8speakon |
Enclosure Construction | 15-Birch Plywood |
Cabinet Surface Treatment | Black Catalyzed Polyurethane Paint |
Dimensions(H×W×D) | 300×900×500mm |
Low | 10IN×2（260mm） |
High | 2.5IN×2（51mm) |
N.W. | 35Kg |

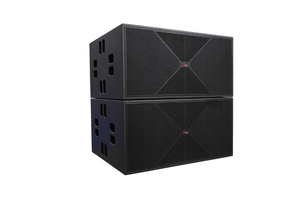

Model | LA-218 |
Frequency Response | 30Hz-180Hz |
Impedance | 4 ohms |
Long-term Power(RMS) | 2000W |
Power peak | 4000W |
Sensitivity | 103dB |
Maximum SPL | 140dB |
Connection） | 2×NL4speakon |
Enclosure Construction | 18-Birch Plywood |
Cabinet Surface Treatment | Black Catalyzed Polyurethane Paint |
DimensionsH×W×D) | 575×1240×800mm |
Low | 18IN×2（220mm） |
N.W. | 96Kg |
