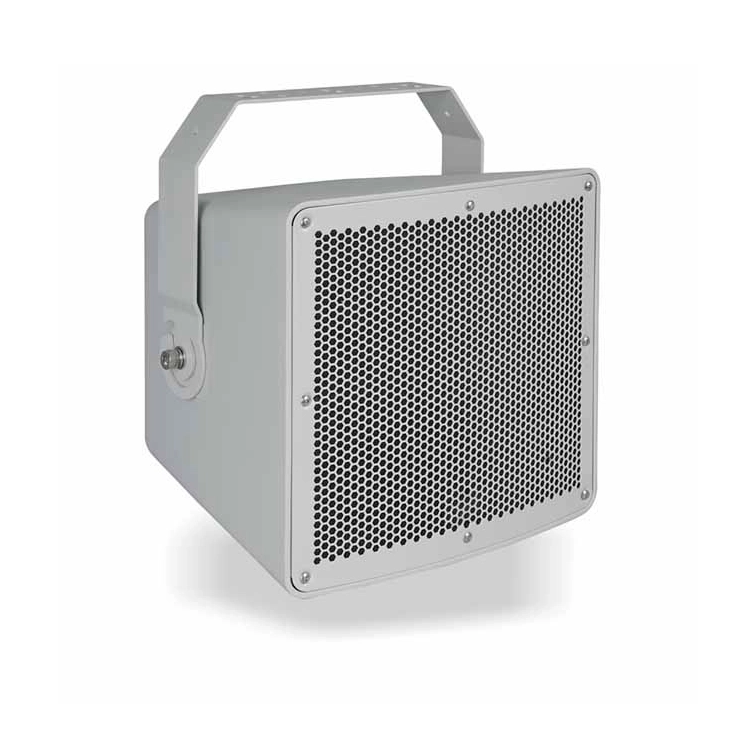

SD-8TS
SD-8TS
This series of products are two-way all-weather speakers, featuring a low-frequency and high-frequency configuration. The cabinet is made of engineering plastic injection molding, which endows the product with all-weather working capability and excellent corrosion resistance and water resistance. This series of products is equipped with multiple output power selection functions and comes with constant voltage and constant resistance options, which can meet the requirements of different signal usage scenarios.
Features
Used for medium and long-range speech reinforcement
Sound reinforeement for cuitural and tourism projects Such as squares,theme parks,scenic Spots,etc
High-quality unit configuration engineering PP material plus fiber boxAll
Weather waterproof rating IP66
Fast and labor-saving mounting bracket design
Applications
Outdoor squares, scenic spots, sports venues, theme parks and other cultural
| Model | SD-8TS |
| Frequency response(±3dB) | 70Hz-20kHz |
| Drivers | 1*8"(200mm)/2"Voice coil LF 1*1"(25mm)/1"Voice coil HF |
| Rated power | 150W RMS, 600W Peak |
| Sensitivity | 96dB 1w/1m |
| Maximumspl | 118 dB continuous,124 dB Peak |
| Impedance | 8 ohms nominal |
| Dispersion 1kHz(-6dB) | H84°×V55° |
| Crossover frequencies | 3kHz passive |
| Material | Pp plus 30% fberglass |
| Color | White/black/grey |

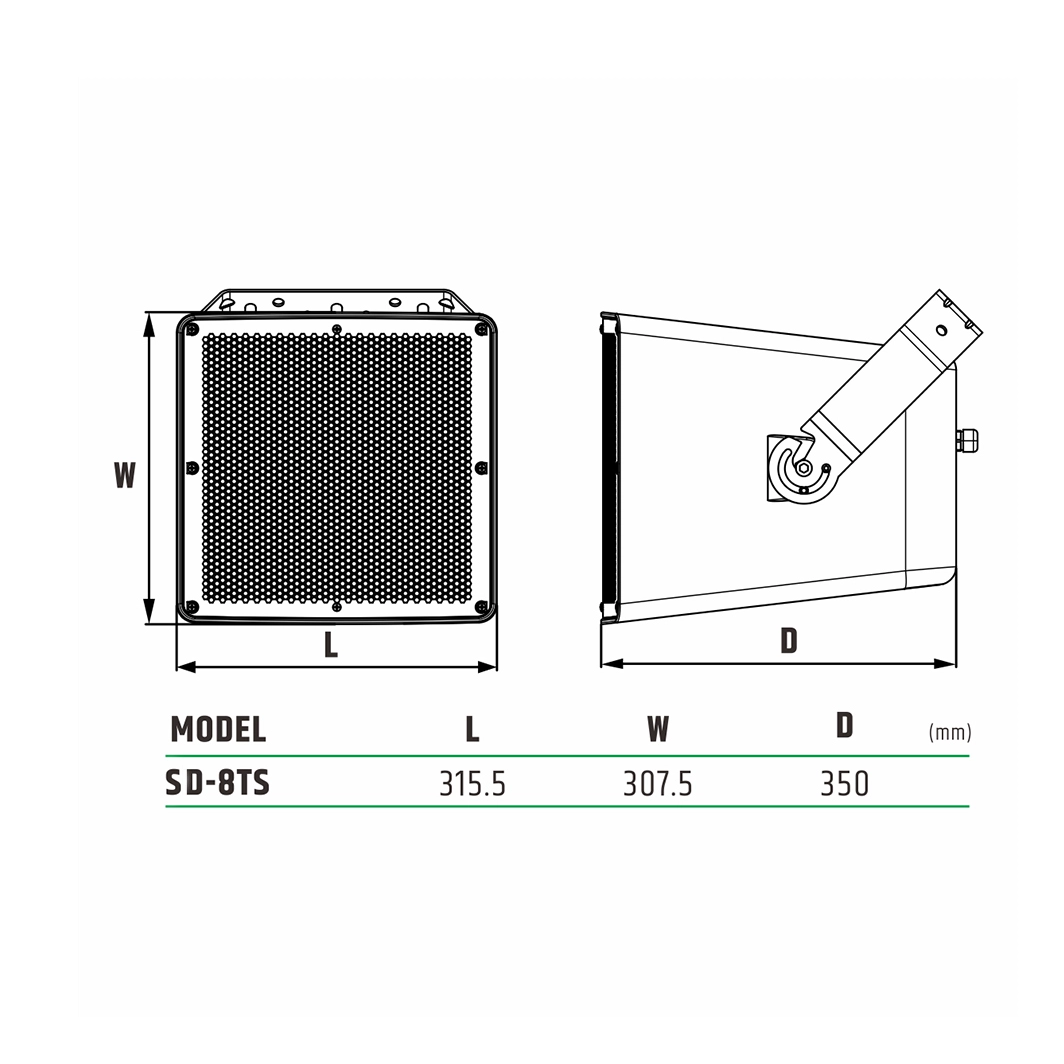

| Size | 315. 5*307.5*350 (mm) |
| Grille material | Iron |
| Bracket material | Iron |
| IP level | IP55 |
| Input connectors | 4-position grid type terminal |
| Packagesize | 388*381*400 (mm) |
| Net weight | 12.3 kg |
| Gross weight | 14.3 kg |
