SX-210A Horn Line Array Parts Bluetooth Speaker Ceiling Speaker

loading

SX-210A Horn Line Array Parts Bluetooth Speaker Ceiling Speaker SX-210A Horn Line Array Parts Bluetooth Speaker Ceiling Speaker
SX-210A Horn Line Array Parts Bluetooth Speaker Ceiling Speaker SX-210A Horn Line Array Parts Bluetooth Speaker Ceiling Speaker

loading

SX-210A Horn Line Array Parts Bluetooth Speaker Ceiling Speaker

Availability:
Quantity:
Inquire Add to Basket
The SX-210A have double 10"LF unit, double 2" compress driver. The systemadopt advanced branching map technique, made MF and LF output the samequality SPL. The line array speaker system took over us more than 3 years to develop and improve. The speaker box and loudspeaker also are waterproofit's suitable for outdoor place. lt meets the need for a high power, high bassimpact system that is versatile and scalable for a very wide range of applications in the live sound, corporate and fixed installation fields

  • SX-210A

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
ceiling speaker audio mixer sound mixer Bluetooth Speaker subwoofer sound equipment
Product Description

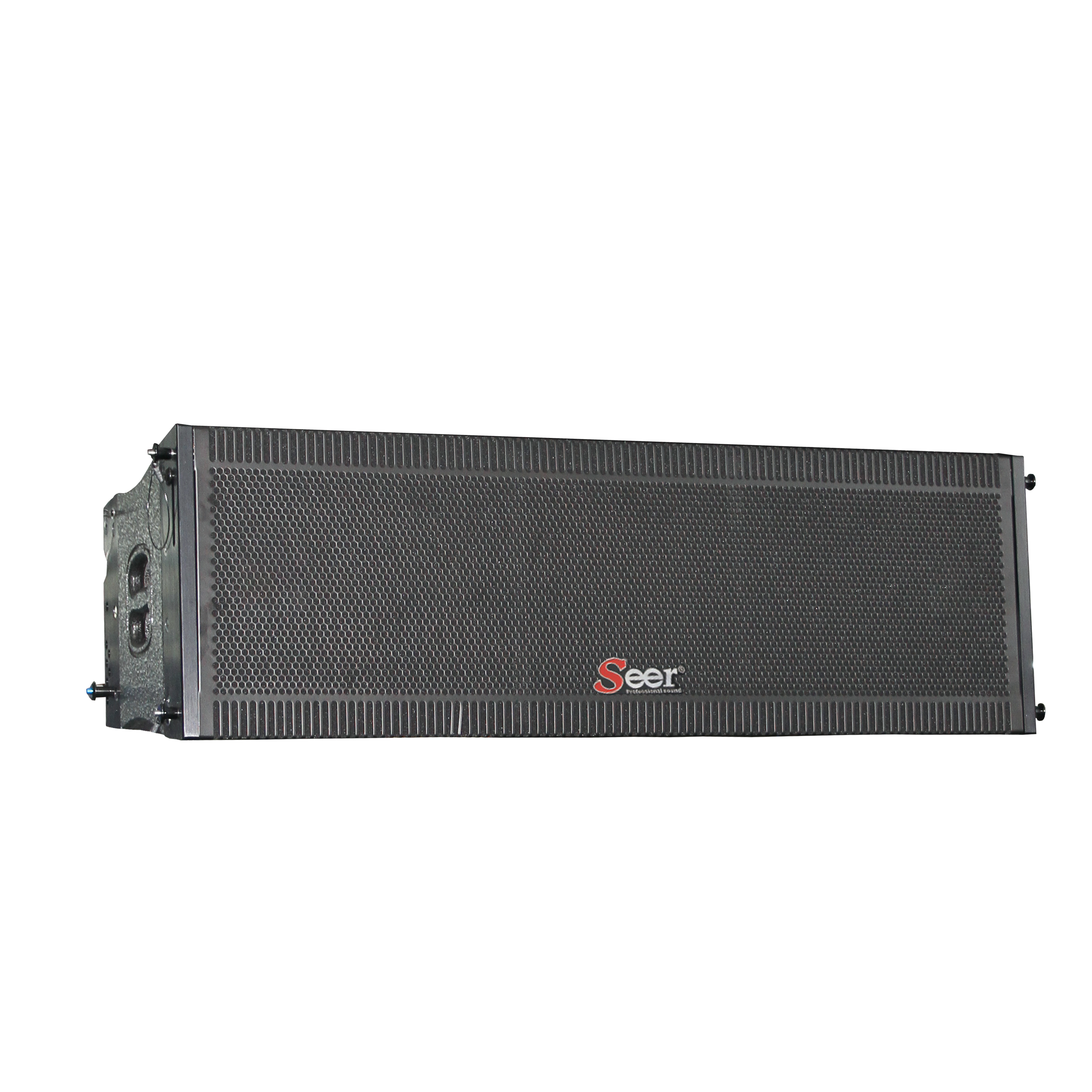

SX-210A Active Line Array

The SX-210A have double 10"LF unit, double 2" compress driver. The systemadopt advanced branching map technique, made MF and LF output the samequality SPL. The line array speaker system took over us more than 3 years to develop and improve. The speaker box and loudspeaker also are waterproofit's suitable for outdoor place. lt meets the need for a high power, high bassimpact system that is versatile and scalable for a very wide range of applications in the live sound, corporate and fixed installation fields.

ModelAX-210
Frequency Response60Hz-20KHz
Directivity AngleH100°×V10°
Long-term Power(RMS)800W
Power peak handing1600W
Impedance8 ohms
Sensitivity104dB
Maximum SPL138dB
Connection2×NL 8 speakon
Enclosure Construction15-Birch Plywood
Cabinet Surface TreatmentBlack Catalyzed Polyurethane Paint
Dimensions(H×W×D)315×905×450mm
Low10 IN×2[310mm]
High2 IN×2[44mm]
N.W.48Kg
PowerAC220V/ 50Hz-60Hz
