TD-253 Three Way Audio Professional Speaker Line Array Cinema System


Availability:

Quantity:



Inquire Add to Basket

The TD-253 is a three-way frequency division and can be selected as a dual or three-way drive. 10 "IF system, high power, low distortion. If frequency adopts phase plug coupling technology to improve white clarity. Ultra-thin and deep, perfect for theaters with limited screen distance to the back wall. Products are rigorously tested to ensure their consistency. The height of the middle and high frequencies can be adjusted up and down to meet the coverage of the sound field.

Model:
TD-253

Three Way Audio Professional Speaker Line Array Cinema System

Product Description

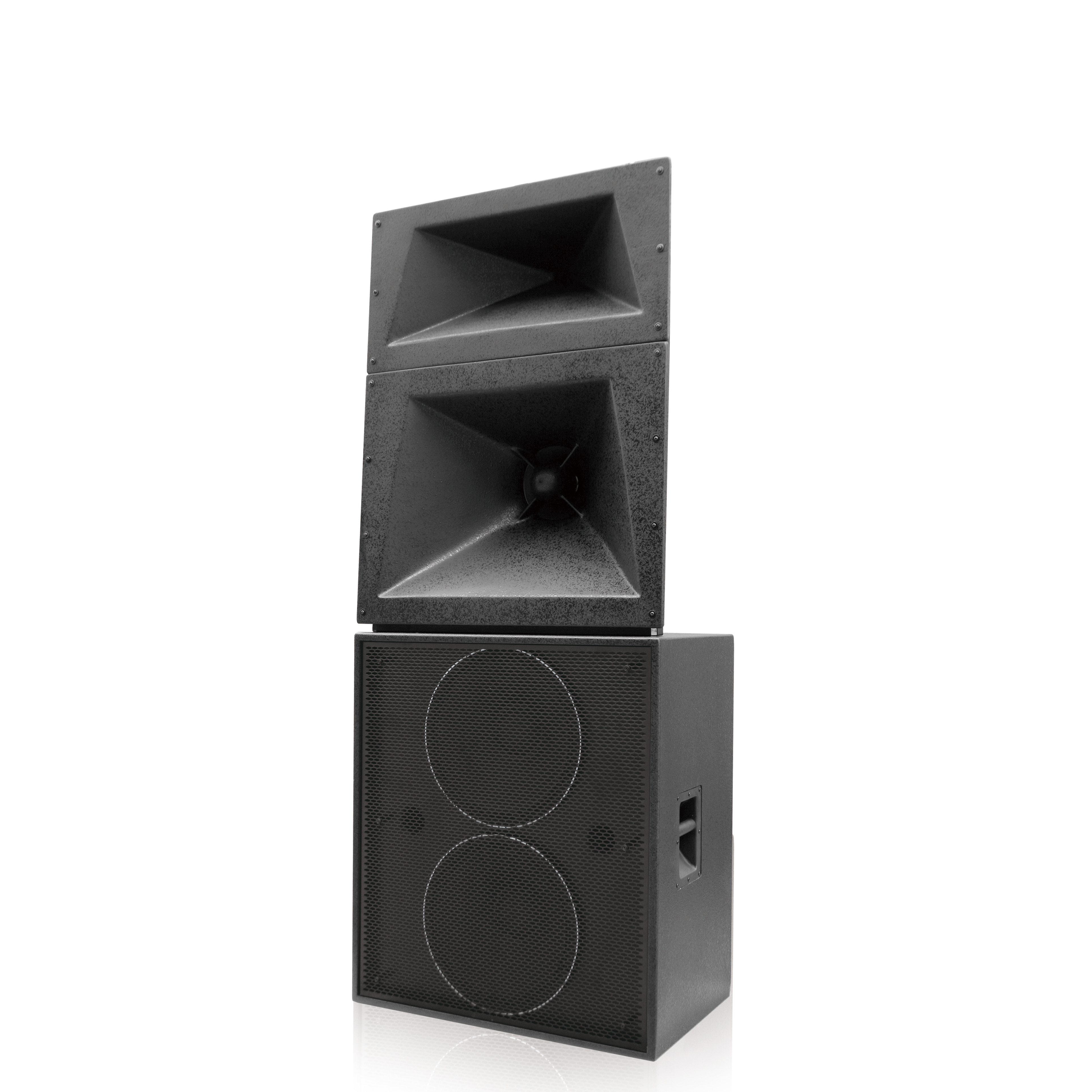

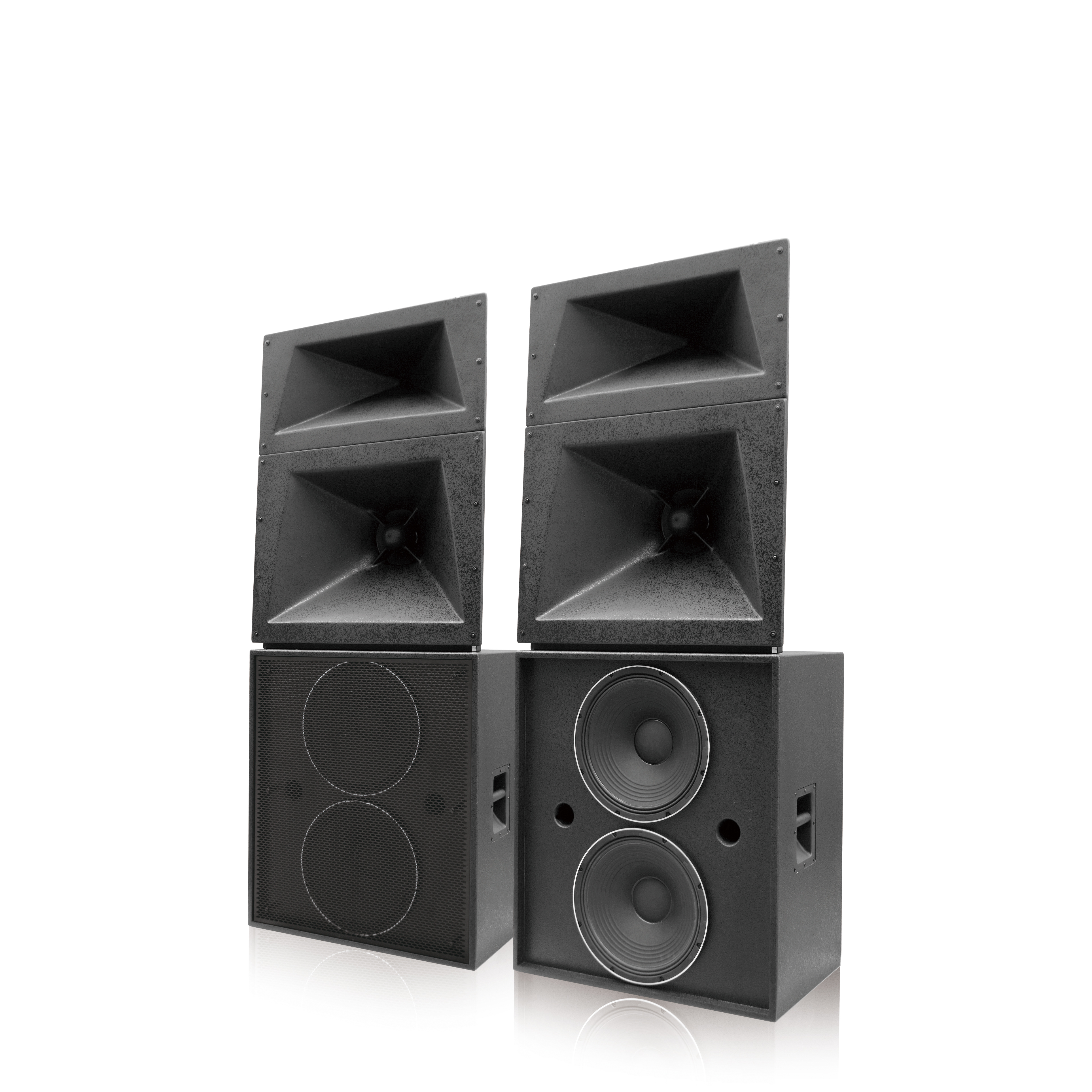

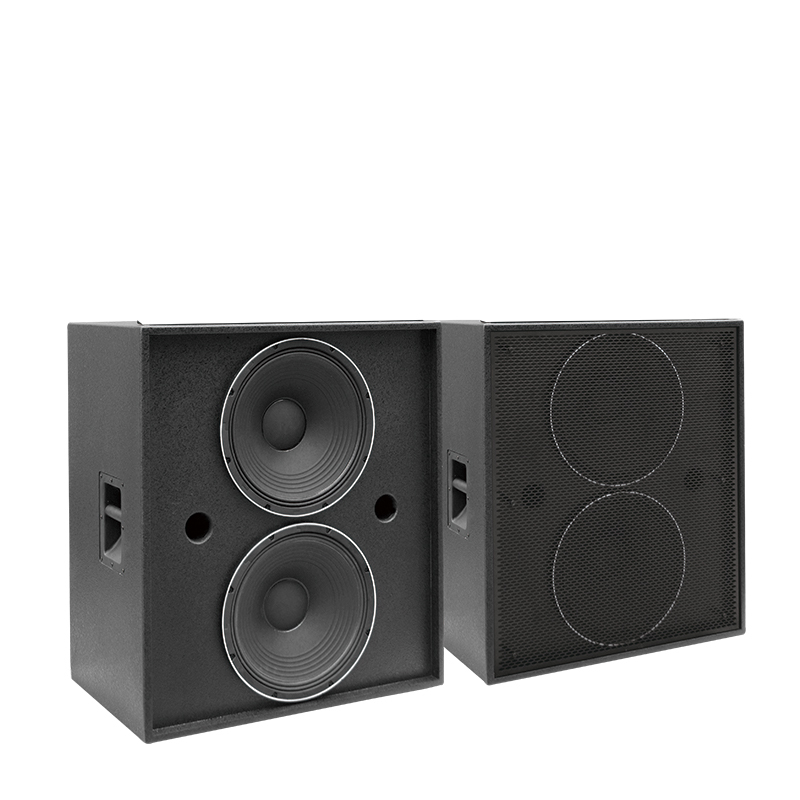

TD-253 Cinema Speaker

The TD-253 is a three-way frequency division and can be selected as a dual or three-way drive. 10 "IF system, high power, low distortion. If frequency adopts phase plug coupling technology to improve white clarity. Ultra-thin and deep, perfect for theaters with limited screen distance to the back wall. Products are rigorously tested to ensure their consistency. The height of the middle and high frequencies can be adjusted up and down to meet the coverage of the sound field.

Model	TD-253
Frequency response	30Hz-20KHz
Directivity Angle	H90° x V（+20° to -30°）
Impedance	LF:4ohms/HF:8ohms
Long-term Power(RMS)	LF:800W, MF+HF:250W
Power peak	LF:1600W,MF+HF500W
Sensitivity	LF:100dB,MF+HF:106dB
Frequency division point	2KHz
Harmonic distortion	≤%2
LF Dimensions(H×W×D)	755×465×850mm
MF+HF Dimensions(H×W×D)	755×600×865mm
Low	15inch *2 （380mm）
Mid	10inch*1
High	3inch *1（75mm）
N.W.	LF:60kg/HF:34kg
