Active Full Range Speaker Series is a project installation series; it is special design for big andmiddleperformance outside and some entertainments. There is an exactitude Seer crossover inside, the soundrelease from the series have some advantages as follows:A. Strong penetration low distortion B. Inviting sound super high SPL C. CT series adopting intellectual flying system series, which make CTD. series very easy be installed. It will take you less than half anE. hour to finish it. Application: Nightclub,KTV,coffee bar,club,F.meeting room, Disco and other entertainment.
Active Full Range Speaker Series is a project installation series; it is special design for big andmiddleperformance outside and some entertainments. There is an exactitude Seer crossover inside, the soundrelease from the series have some advantages as follows:A. Strong penetration low distortion B. Inviting sound super high SPL C. CT series adopting intellectual flying system series, which make CTD. series very easy be installed. It will take you less than half anE. hour to finish it. Application: Nightclub,KTV,coffee bar,club,F.meeting room, Disco and other entertainment.
Q-A Series
Model
Q-108
Q-110
Q-112

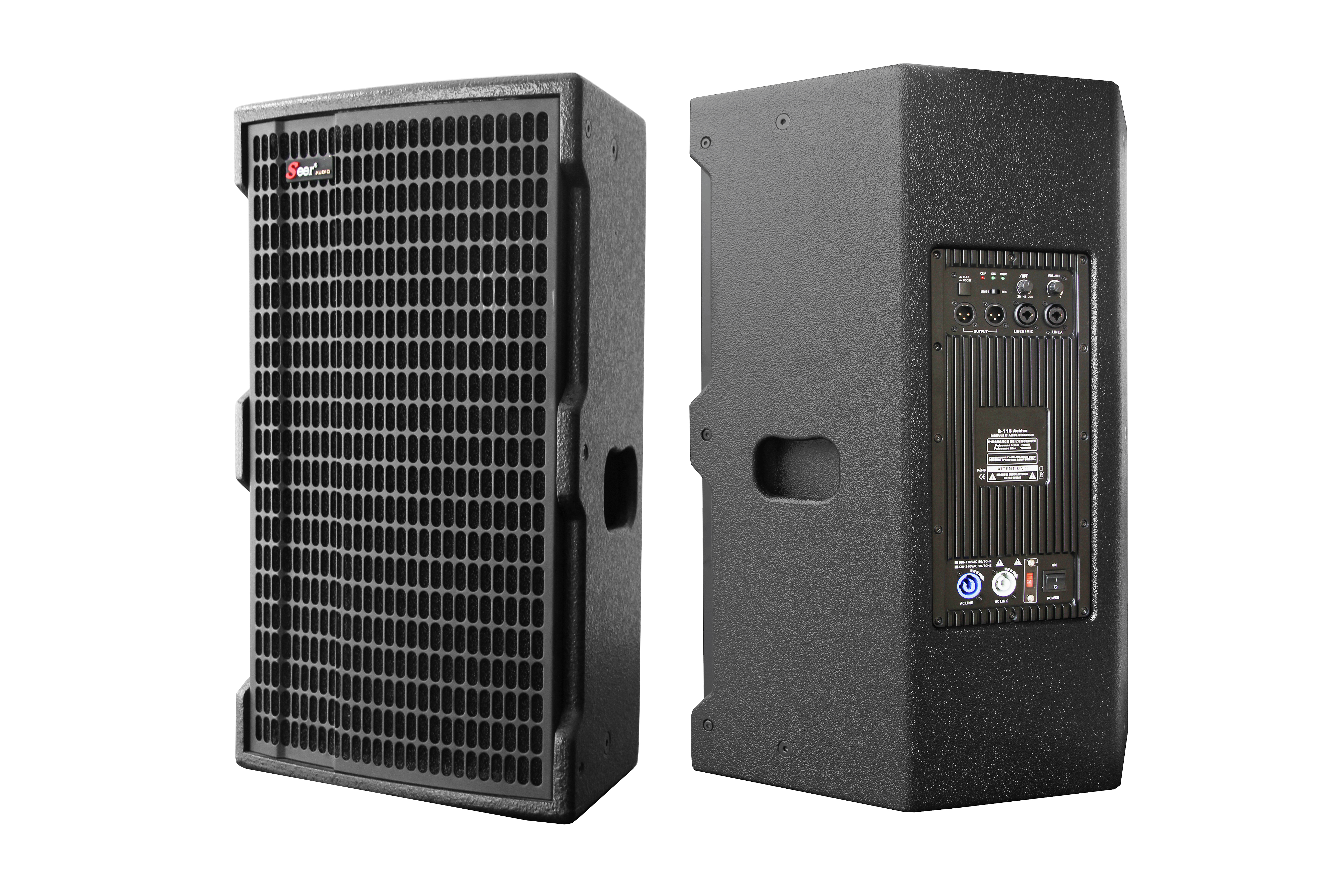

Q-115
Frequency Response
60Hz-20KHz
52Hz-20KHz
48Hz-20KHz
48Hz-20KHz
Directivity Angle
H90°×V50°
H90°×V50°
H90°×V50°
H90°×V50°
Impedance
8 ohms
8 ohms
8 ohms
8ohms
Long-term Power(RMS)
250W
350W
450W
700W
Power peak handing）
500W
700W
900W
1400W
Sensitivity
97dB
98dB
101dB
103dB
Maximum SPL
121dB
125dB
128dB
130dB
Connection
2×NL 4 speakon
2×NL 4 speakon
2×NL 4 speakon
2×NL 4 speakon
Enclosure Construction
15-Birch Plywood
15-Birch Plywood
15-Birch Plywood
15-Birch Plywood
Cabinet Surface Treatment
Black Catalyzed Polyurethane Paint
Black Catalyzed Polyurethane Paint
Black Catalyzed Polyurethane Paint
Black Catalyzed Polyurethane Paint
Dimensions(H×W×D)
440×280×256.25mm
510×311×277mm
598×267×325mm
688X444X325mm
Low
8 IN×1（210mm）
10 IN×1（260mm）
12 IN×1（310mm）
15 IN×1（380mm）
High
2 IN×1（44mm）
2 IN×1（44mm）
2 IN×1（44mm）
2.5 IN×1（34mm）
N.W.
11.5kg
15.5g
17kg
22kg
Power
AC 220V / 50Hz-60Hz
TR Series
Model
TR-10
TR-12
TR-15
Frequency Response
65Hz-20KHz
50Hz-18KHz
55Hz-18KHz
Directivity Angle
H90°×V50°
H90°×V50°
H90°×V50°
Impedance
8ohms
8ohms
8ohms
Long-term Power(RMS)
200W
300W
400W
Power peak handing
400W
600W
800W
Sensitivity
95dB
97dB
99dB
Maximum SPL
118dB
125dB
128dB
Connection
2×NL 4 speakon
2×NL 4 speakon
2×NL 4 speakon
Enclosure Construction
15Birch Plywood
15Birch Plywood
15Birch Plywood
Cabinet Surface Treatment
Black Catalyzed Polyurethane Paint
Black Catalyzed Polyurethane Paint
Black Catalyzed Polyurethane Paint
Dimensions(H×W×D)
486×305×310mm
583×362×370mm
685X435X483mm
Low
10 IN×1（260mm）
12 IN×1（310mm）
15 IN×1（380mm）
High
1.5IN x1(44mm)
2IN x1(44mm)
2IN x1(44mm)
N.W.
16kg
22kg
26kg
PS-IIA Series
Model
PS-8IIA
PS-10IIA
PS-12IIA
PS-15IIA
Frequency Response
70Hz-20KHz
65Hz-20KHz
60Hz-18KHz
55Hz-18KHz
Directivity Angl
H90°×V50°
H90°×V50°
H90°×V50°
H90°×V50°
Impedance
8 ohms
8 ohms
8 ohms
8 ohms
Long-term Power(RMS)
200W
300W
400W
600W
Power peak handing
400W/5Min
600W/5Min
800W/5Min
1200W/5Min
Sensitivity
95dB(2.83V/m)
97dB(2.83V/m)
99dB(2.83V/m)
101dB(2.83V/m)
Maximum SPL
115dB
123dB
126dB
130dB
Connection）
2×NL 4 speakon
2×NL 4 speakon
3×NL 4 speakon
3×NL 4 speakon
Enclosure Construction
15-Birch Plywood
15-Birch Plywood
15-Birch Plywood
15-Birch Plywood
Cabinet Surface Treatment
Black Catalyzed Polyurethane Paint
Black Catalyzed Polyurethane Paint
Black Catalyzed Polyurethane Paint
Black Catalyzed Polyurethane Paint
Dimensions(H×W×D)
420×260×225mm
540×325×285mm
620×420×330mm
690×450×400mm
Low
8 IN×1（210mm）
10 IN×1（260mm）
12 IN×1（310mm）
15 IN×1（380mm）
High
1.5IN x1(44mm)
2IN x1(44mm)
2IN x1(44mm)
3IN x1(75mm)
N.W.
13kg
15kg
25kg
27kg
Power
AC 220V / 50Hz-60Hz

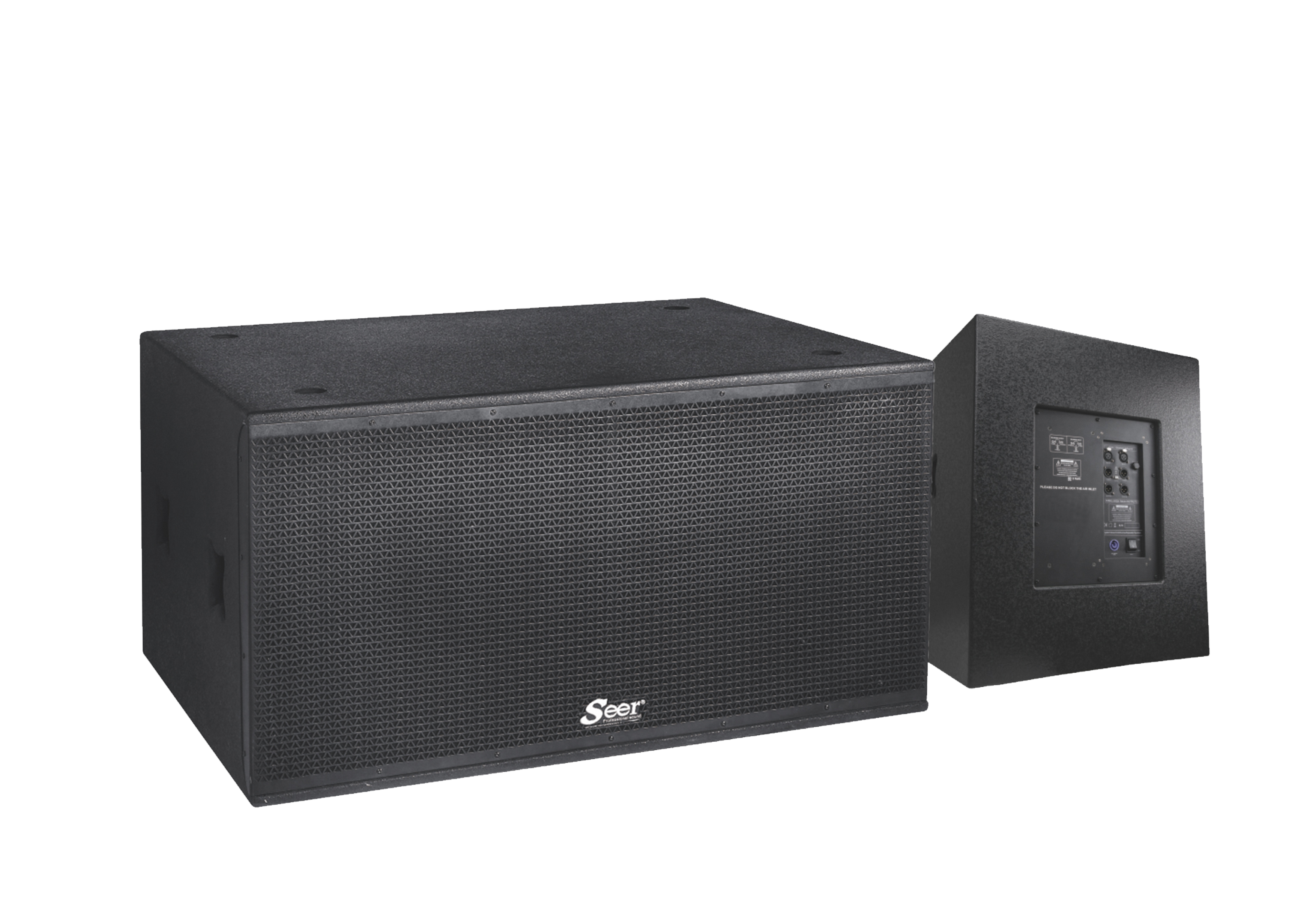

CT-A Series
Model
CT-118B
CT-218B
Frequency Response
45Hz-250Hz
45Hz-250Hz
Impedance
8ohms
4ohms
Long-term Power(RMS)
600W
1200W
Power peak handing
1200W/5Min
2400W/5Min
Sensitivity
100dB（2.83v/m）
102dB（2.83v/m）
Maximum SPL
125dB
130dB
Connection
2×NL 4 speakon
2×NL 4 speakon
Enclosure Construction
18-Birch Plywood
18-Birch Plywood
Cabinet Surface Treatment
Black Catalyzed Polyurethane Paint
Black Catalyzed Polyurethane Paint
Dimensions(H×W×D)
690×560×595mm
560×1060×780mm
Low
18 IN×1（460mm）
18 IN×2（460mm）
N.W.
45kg
75kg
