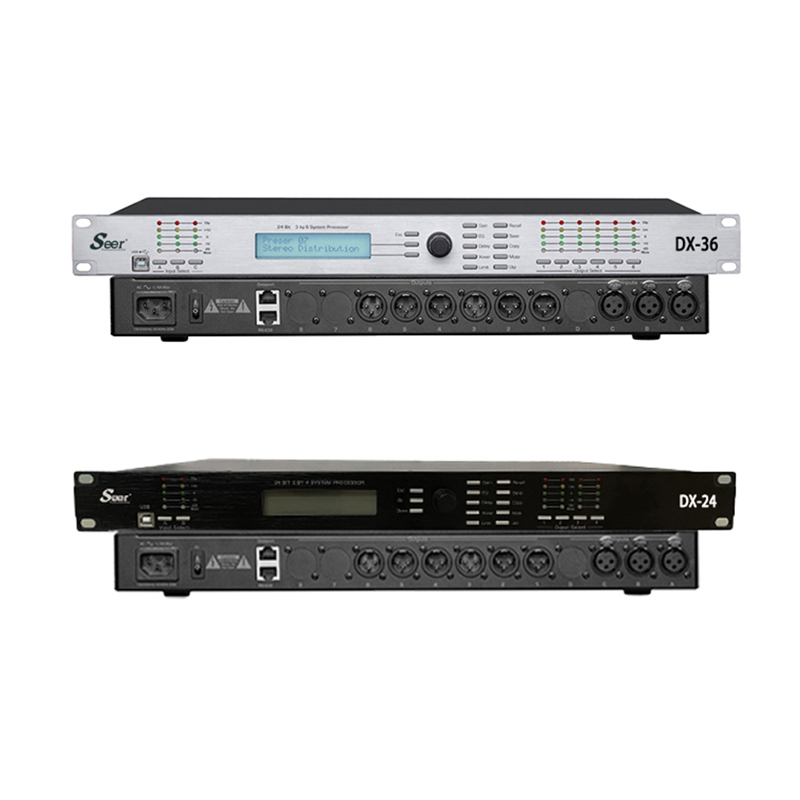

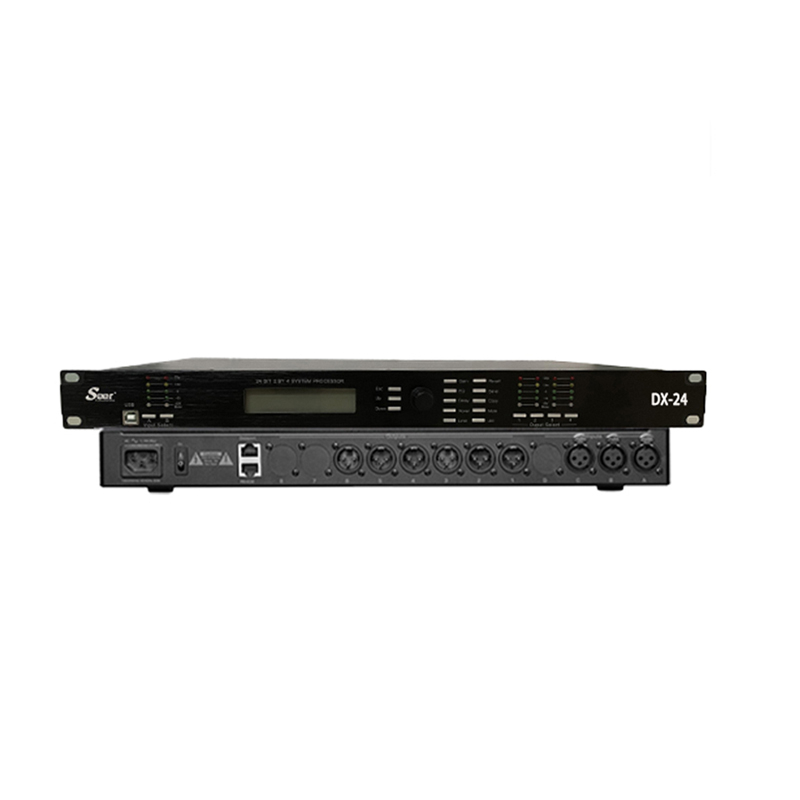

DX Series Digital Processor Professional Processor Good Quality Stage DJ

Max. Input Level

＋20dBu

Input Gain Range

-40dB to+12dB

Output

Active Balanced, 112

Max. Output Level

＋20dBu

Output Gain Range

-40dB to+12dB

EQ Filter Types

1st or 2nd Order High or Low Shelf, Parametric

Shelving Filter Boost/Cut Range

±5dB

Shelving Filter Frequency Range

Low Shelf 19. 7Hz to 2kHz, High Shelf 3. 8kHz to 21. 9kHz

Parametric Filter Boost/Cut Range

＋15dB/-30dB

Parametric Filter Frequency Range

19.7Hz to 21. 9kHz, 1/24 Octave Steps

Parametric Filter Bandwidth

Four Octaves to 1/64 Octave

Input and Delay

0-100 milliseconds

Output Delay

0-20 milliseconds

HPF and LPF Frequency Range

19.7Hz to 21. 9kHz, Off

Available Filter Types

12dB/Oct Butterworth, 12dB/Oct Bessel, 12dB/Oct Linkwitz-Riley

18dB/Oct Bessel, 18dB/Oct Linkwitz-Riley

24dB/Oct Butterworth, 24dB/Oct Bessel, 24dB/Oct Linkwitz-Riley

48dB/Oct Buatterworth, 48dB/Oct Bessel, 48dB/Oct Linkwitz-Riley

Threshold Range

－20dBu to+20 dBu

Ratio Range

1.2: 1 to INF: 1

Attack Time Range

0.5ms to 50ms

Release Time Range

10ms to 1 Second

Frequency Response

20Hz to 20KHz, ? . 25dB

THD

＜0. 01%@1KHz, +20dBu

Dynamic Range

＞110dB 20Hz-20KHz unweighted

Audio Sampling Rate

48KHz

Propagation Delay

1. 46mS

Signal LEDs & Clip

Inputs: -20/Mute,-10,0,+10,Clip (dBu or VU)

Outputs: -20/Mute,-10, 0,Limit Threshold, Clip (dBu or VU)

AC Requirements

Universal Power Supply, 100-240VAC, 50/60Hz, 20W max

Environmental

40°F-120℉F (4℃-49℃)Non-condensing。

Weight

9 Lbs

Dimensions

19.0"Lx 1.75"Hx 8.5"D (48.3 cmx 8.9 cm x 21.6cm)
