1.32-bit DSP SHARC process, 96kHz sampling rate, 24-bit AD/DA convert. 2.Input processing includes High-cut, Low-cut, 8 PEQ,Noise gate,Gain, Mute, Phase,Delay, Link and so on. 3.Output processing includes crossover, 9 PED, Gain, MuteCompressor/ Limiter, Phase, Delay. Link and so on. 4.Every input and output can do matrix assign flexibly, andall the input and output channelname can be changed. 5.All channel PEQ gain, bandwidth, frequency adjustment. we can choose style:PEAK,H-SHELF, L-SHELF, Low cut,High cut,All-pass 1,All-pass 2. 6.All the input and output with independent phase curve adjust function, PED stylechoose ALLPASS 1 is 180curve adjust,ALLPASS 2 is 360curve adjust. 7.The style of all High-cut ,Low-cut filter and Distributor unit: Butter-worth,Linkwitz-Riley, Bessel; slope is from -6dB/0ct to -48dB/0ct. 8.All output channel soft compressor/limiter threshold, ratio, attack time and release time,adjustable. 9.All delay module's delay time can reach over 680ms. 10.Pre settings can copy for every single channel, every channel can do link adjust. 11.Every input and output channel PED curve adjusting picture can be found when you are in any input and output. 12.Inside single generator (pink, white noise and 20-20K sine wave, amplitude adjustable).) 13.Front panel has level indicator for input/output, USB pot, RS232, 485 control at rear panel. Easy for user’ s operations. 14.30 user preset, device parameter and single preset file can save and recal separately. Maximal 250 units can be link togethervia lD settingsPassword protection function for high level applications.
2. Input processing includes High-cut, Low-cut, 8 PEQ,Noise gate,Gain, Mute, Phase,Delay, Link and so on.
3. Output processing includes crossover, 9 PED, Gain, MuteCompressor/ Limiter, Phase, Delay. Link and so on.
4. Every input and output can do matrix assign flexibly, andall the input and output channelname can be changed.
5. All channel PEQ gain, bandwidth, frequency adjustment. we can choose style:PEAK,H-SHELF, L-SHELF, Low cut,High cut,All-pass 1,All-pass 2.
6. All the input and output with independent phase curve adjust function, PED stylechoose ALLPASS 1 is 180curve adjust,ALLPASS 2 is 360curve adjust.
7. The style of all High-cut ,Low-cut filter and Distributor unit: Butter-worth,Linkwitz-Riley, Bessel; slope is from -6dB/0ct to -48dB/0ct.
8. All output channel soft compressor/limiter threshold, ratio, attack time and release time,adjustable.
9. All delay module's delay time can reach over 680ms.
10. Pre settings can copy for every single channel, every channel can do link adjust.
11. Every input and output channel PED curve adjusting picture can be found when you are in any input and output.
12. Inside single generator (pink, white noise and 20-20K sine wave, amplitude adjustable).)
13. Front panel has level indicator for input/output, USB pot, RS232, 485 control at rear panel. Easy for user’ s operations.
14. 30 user preset, device parameter and single preset file can save and recal separately. Maximal 250 units can be link togethervia lD settingsPassword protection function for high level applications.
Model

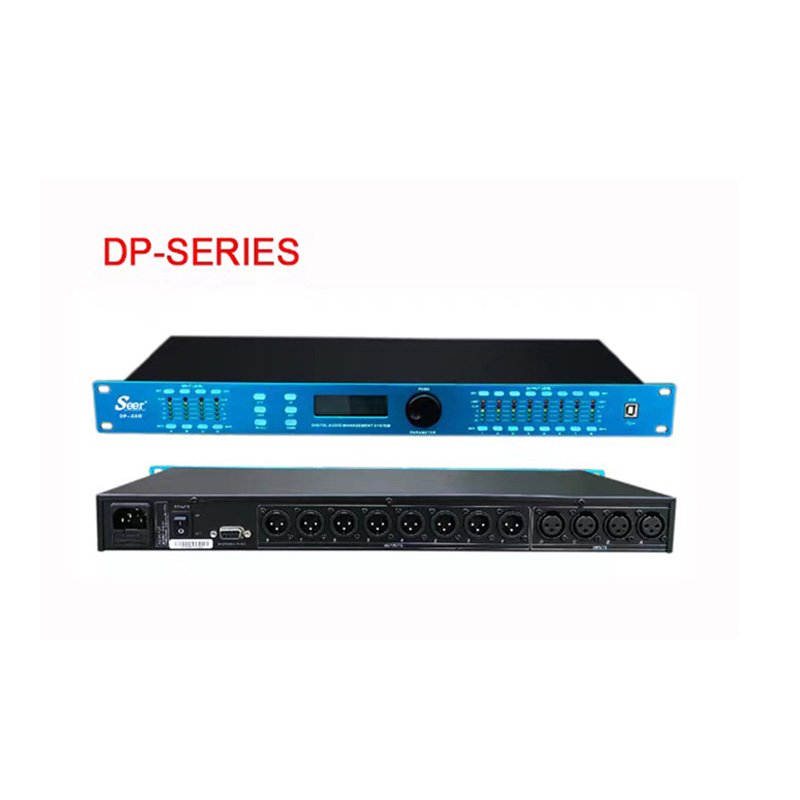

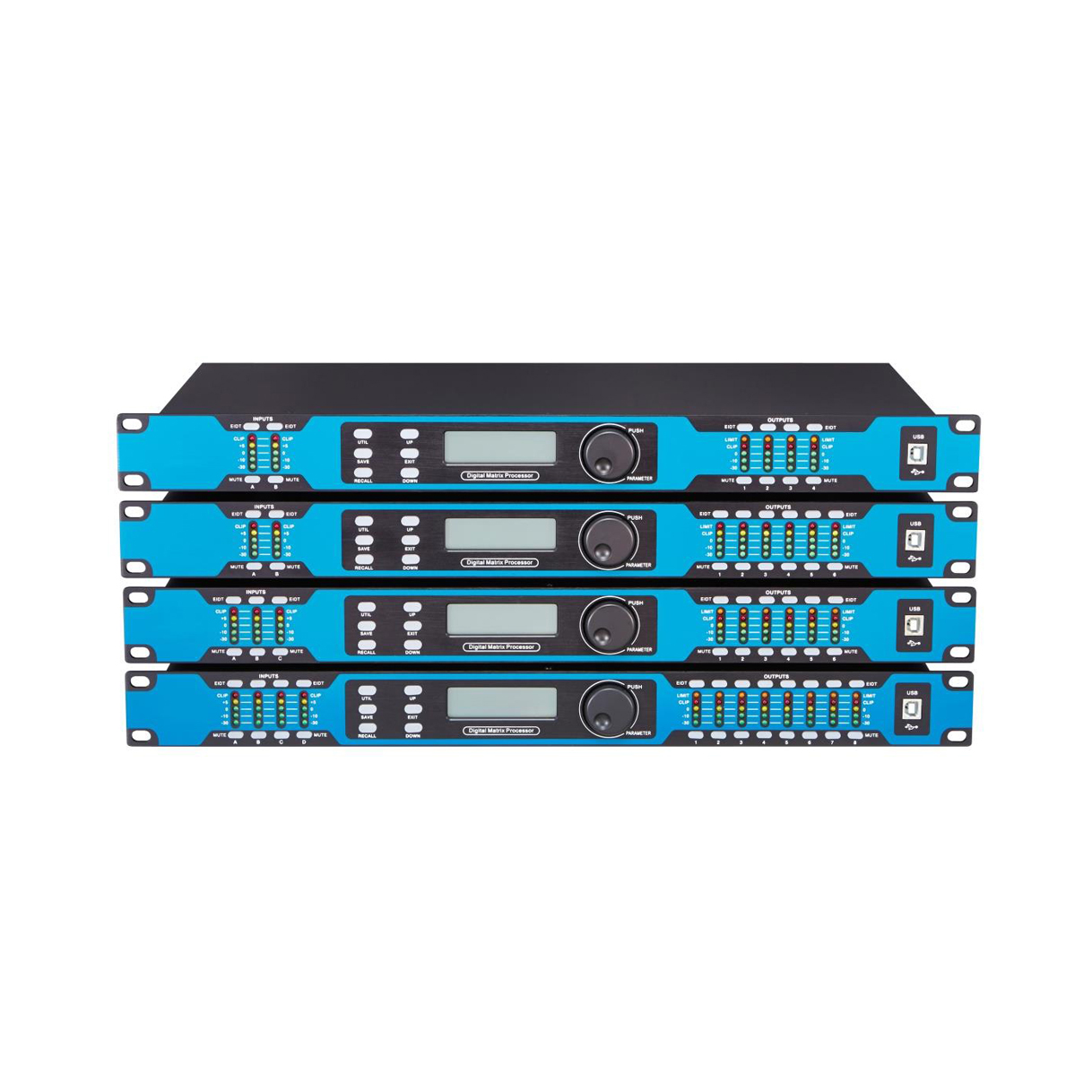

DP-48II
System Specification
Frequency Response
20Hz-20kHz,-0.3dB
S/N Ratio
＞115dB
Distortion(THD)
＜0.005@1kHz[0dB]
Cross-talk
＜100dB below full scale
Input Section
Type
Balanced XLR
Max.Input Level
+18dB
Impedance
1M/ohms Stereo: 500K ohms/ MOMO
Output Section
Type
Balanced XLR
Max. Input Level +18dB
Impedance
＜500ohms
Digital Processing
24-Bit Sigma - Delta Converters
96Khz Sampling Rates
Display
Dot Matrix Screen Display For Parameters Setting And Function Select
