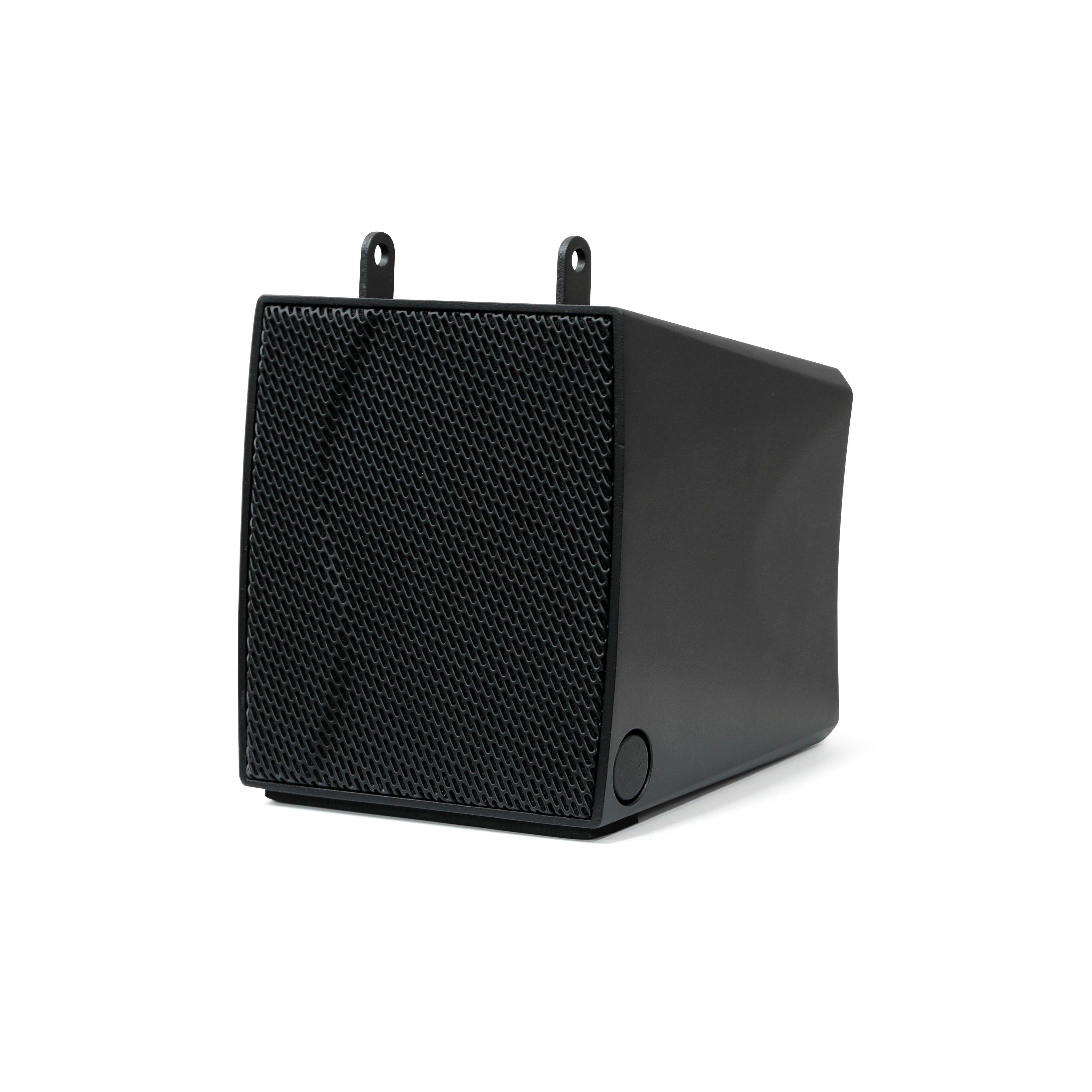

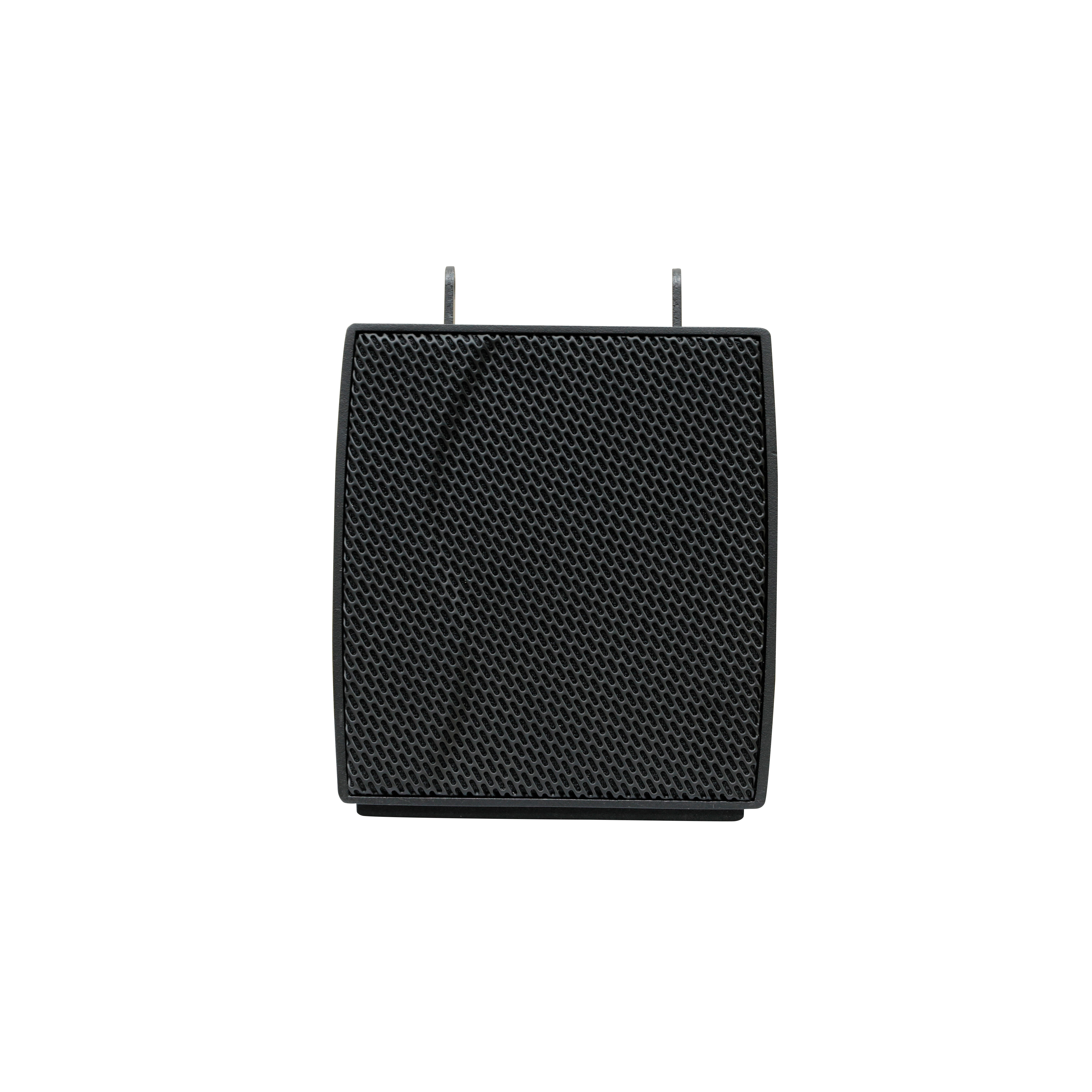

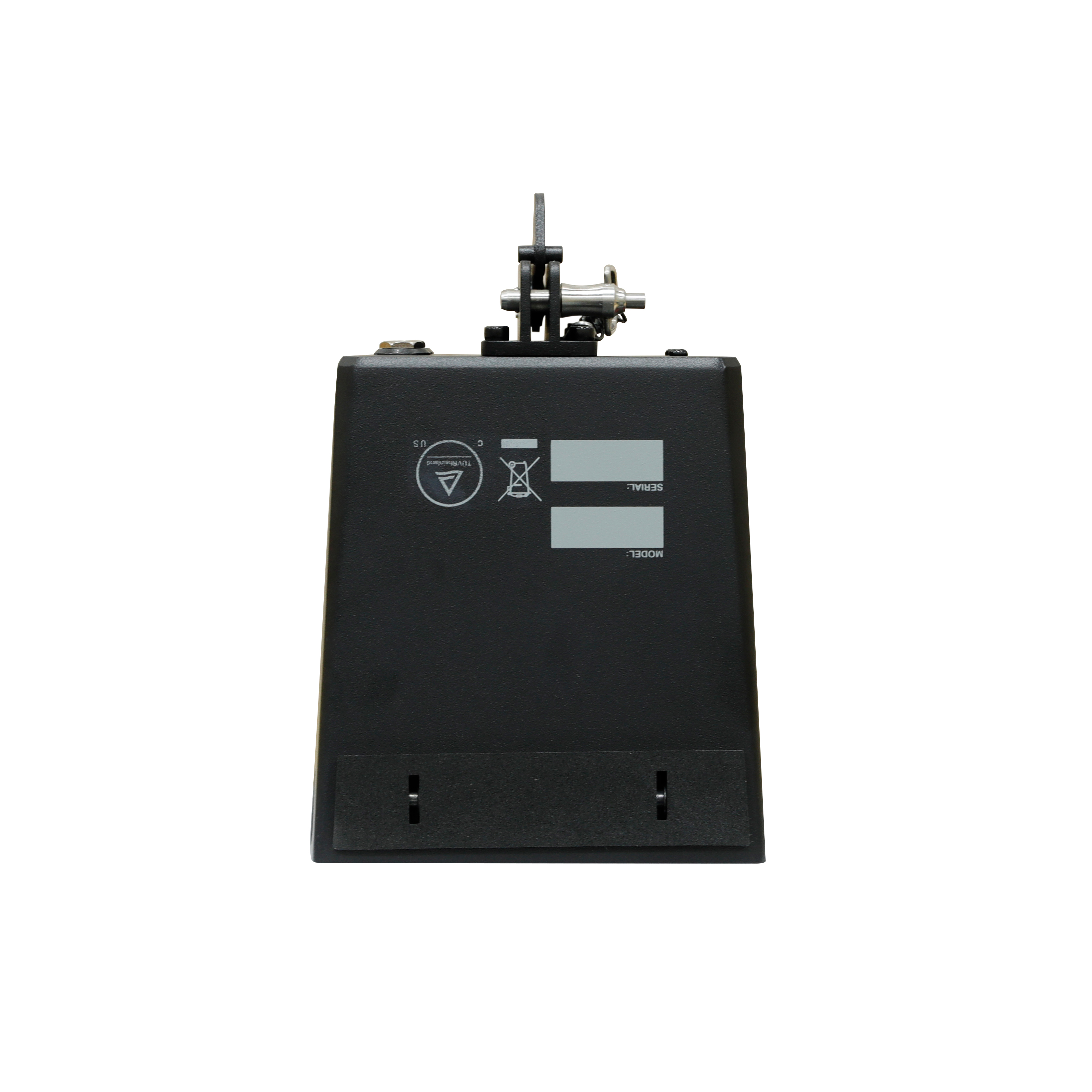

Mini 4 Line Array System Professional SpeakerMini Column


Availability:

Quantity:



Inquire Add to Basket

Model:
Mini 4

Mini Column line array speaker professional audio professional speaker sound amplifier Subwoofer amplifier pa amplifier monitor speaker amp 18 inch speaker

Product Description

Model	Mini 4
System Type	Passive binary frequency
LF	1*4 Low frequency /1 "high temperature resistant voice coil
HF	3*0.5 "neodymium magnet internal magnetic driver
RMS Power	30W(RMS)
Peak Power	60W(PEAK)
Maximum SPL @ 1m	91dB
Frequency Response	100Hz-20kHz (-6dB)
Impedance	8 ohms
Crossover Frequency	3.0KHz(12dB/Oct)
Dispersion	110° Horizontal, 20° Vertical (one module)
Attachment Points	Double safety lamp +PCT electronic dynamic protection

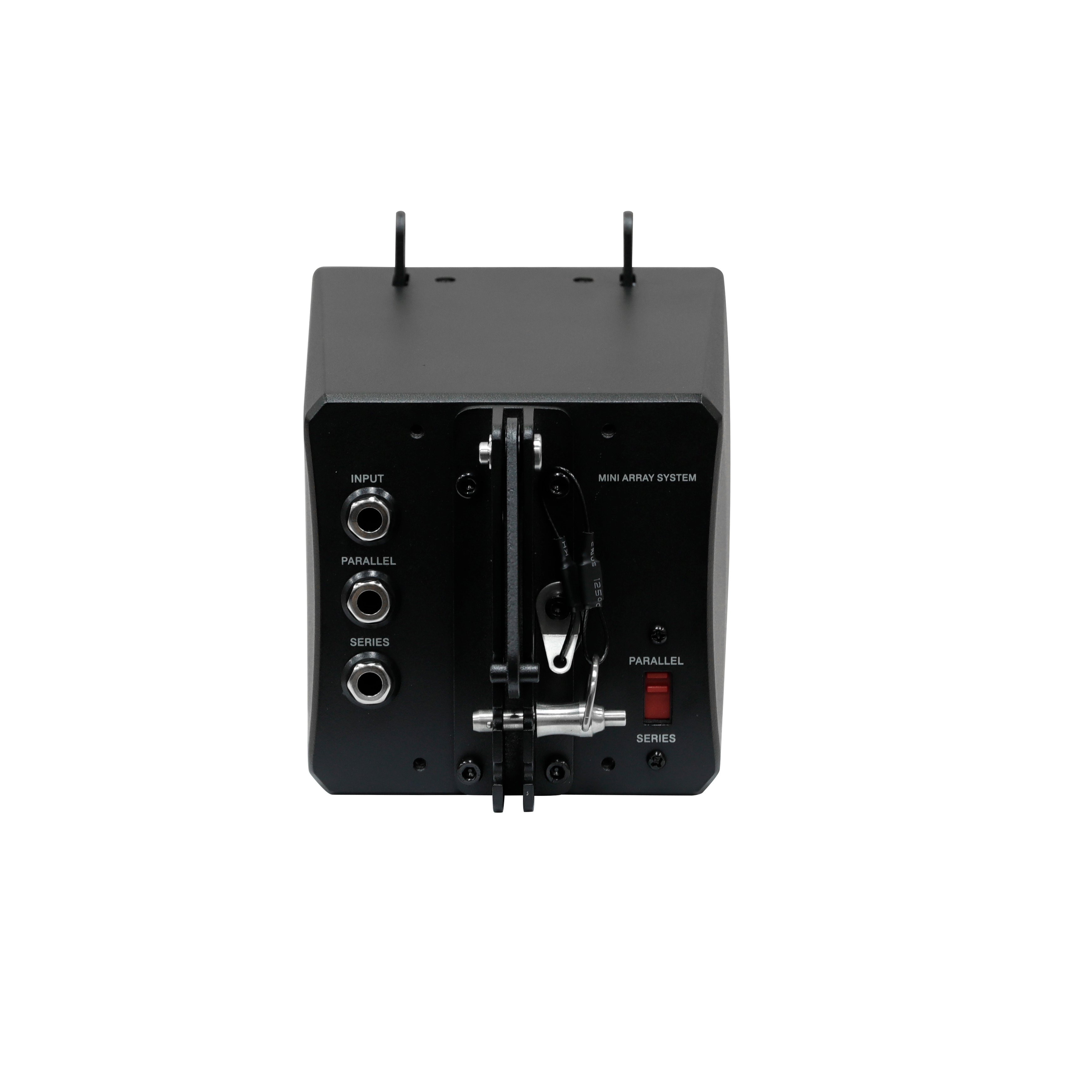

Amphenol Connector	2•1/4"TRS, Series:1•1/4"TRS
Enclosure Construction	Die-cast aluminum housing, black spray paint /M6 mounting holes
Dimensions (H×W×D)	136×126×136mm
Net Weight	1.45kg
