NX-12 Single 12inch Active Line Array Speaker Professional Audio Sound System Pro Audio

loading

NX-12 Single 12inch Active Line Array Speaker Professional Audio Sound System Pro Audio NX-12 Single 12inch Active Line Array Speaker Professional Audio Sound System Pro Audio
NX-12 Single 12inch Active Line Array Speaker Professional Audio Sound System Pro Audio NX-12 Single 12inch Active Line Array Speaker Professional Audio Sound System Pro Audio
NX-12 Single 12inch Active Line Array Speaker Professional Audio Sound System Pro Audio NX-12 Single 12inch Active Line Array Speaker Professional Audio Sound System Pro Audio
NX-12 Single 12inch Active Line Array Speaker Professional Audio Sound System Pro Audio NX-12 Single 12inch Active Line Array Speaker Professional Audio Sound System Pro Audio

loading

NX-12 Single 12inch Active Line Array Speaker Professional Audio Sound System Pro Audio

Availability:
Quantity:
Inquire Add to Basket
Powered all-in-one PA system for audiences of 500-1000, NX-12 mid/ high units,  NX-18BA subwoofer, accessories included. This is a sweet plug-and-play solution for smaller to mid sized venues with audiences of 500 - 1000. Consisting of two mid/high units, one subwoofer, and all the requisite accessories. Surprisingly compact and easily transportable, it nonetheless delivers impressive performance. Configuration and voicing is an exercise in convenience - a simple flip of the Gain/EQ switch on the mid/high units and the Configuration switch on the subwoofer is all it takes. The system’s integrated controller presets do the rest.

  • NX-12

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
line array Active line array professional audio amp speaker digital amplifier loudspeaker
Product Description

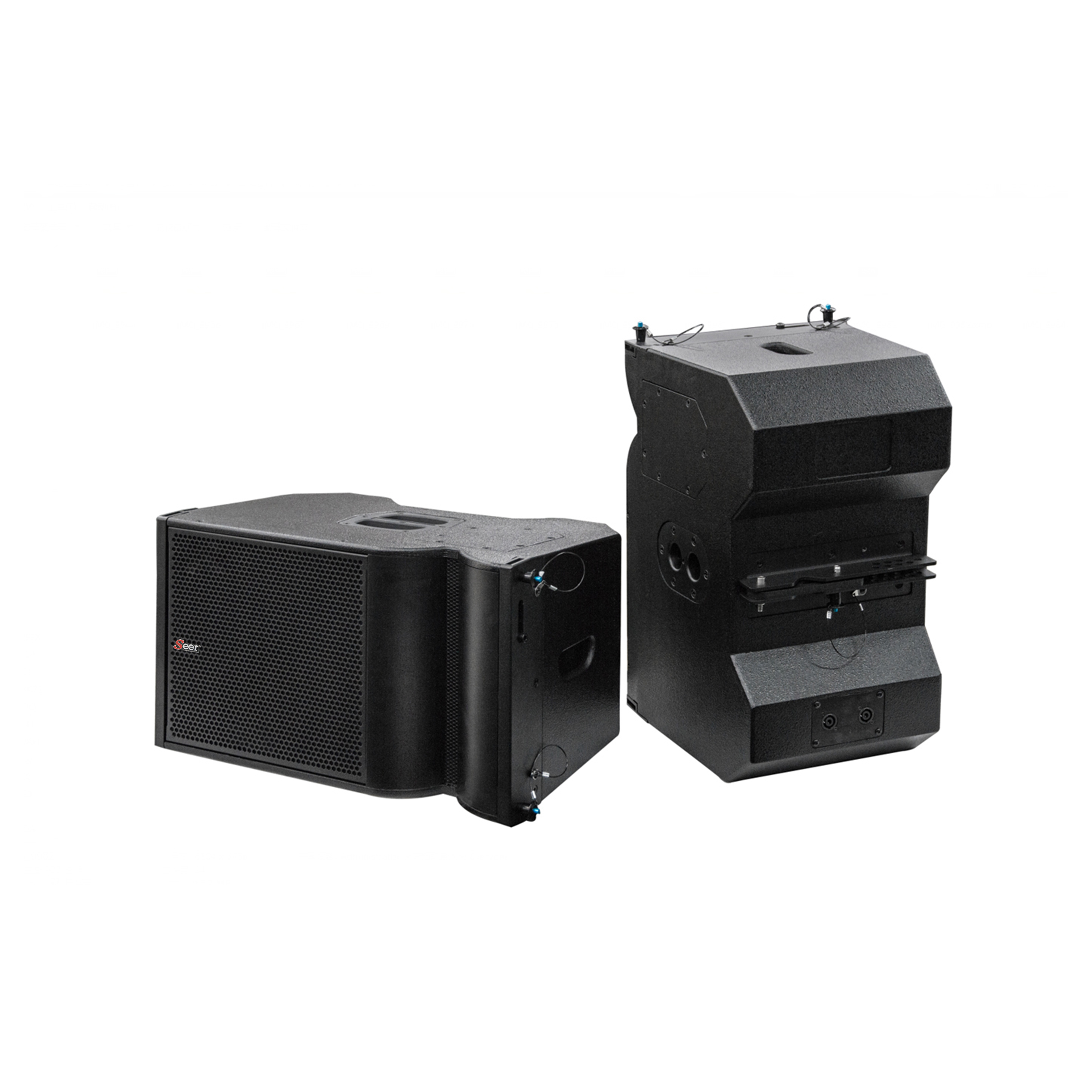

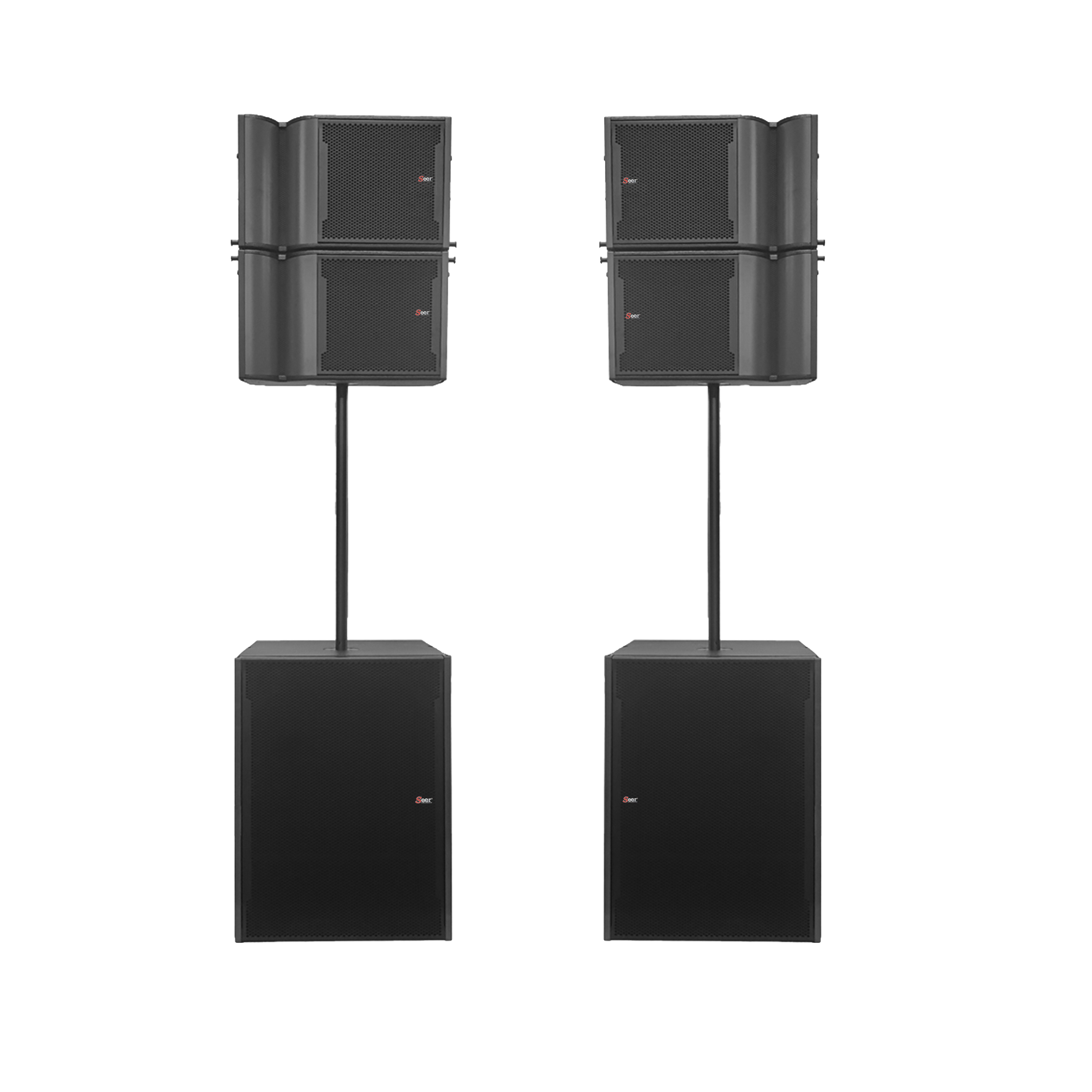

NX-12 Active Line Array System

Powered all-in-one PA system for audiences of 500-1000, NX-12 mid/ high units,  NX-18BA subwoofer, accessories included. This is a sweet plug-and-play solution for smaller to mid sized venues with audiences of 500 - 1000. Consisting of two mid/high units, one subwoofer, and all the requisite accessories. Surprisingly compact and easily transportable, it nonetheless delivers impressive performance. Configuration and voicing is an exercise in convenience - a simple flip of the Gain/EQ switch on the mid/high units and the Configuration switch on the subwoofer is all it takes. The system’s integrated controller presets do the rest.

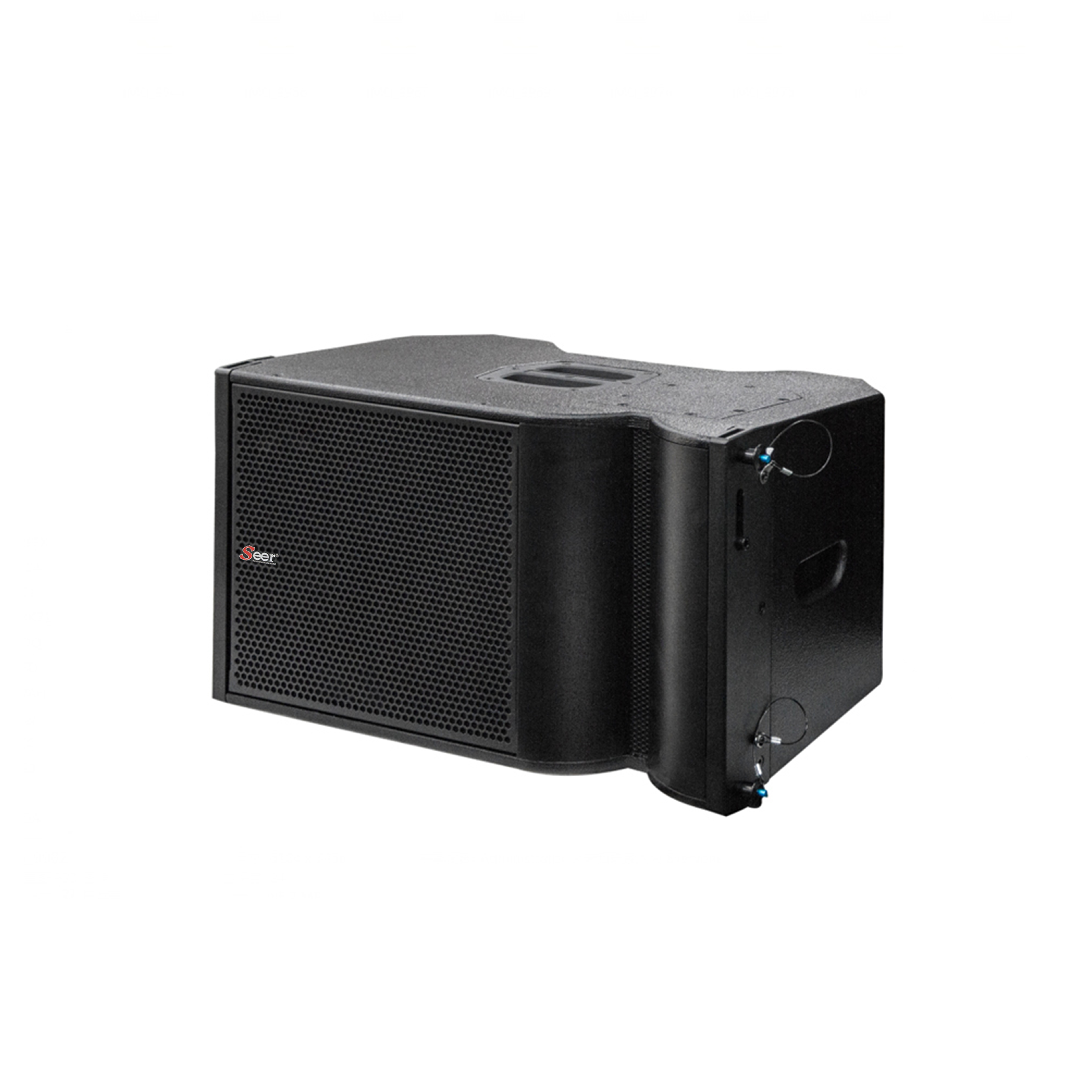

ModelNX-12
Frequency Response45Hz-20KHz
Directivity AngleH120°×V10°
Impedance8 ohms
Long-term Power(RMS）500W
Power peak1000W
Sensitivity98dB
Maximum SPL128dB
Connection2×NL4speakon
Dimensions(H×W×D)340×565×380mm
Low12IN×1（310mm）
High2IN×2（44mm)
N.W.31.5kg

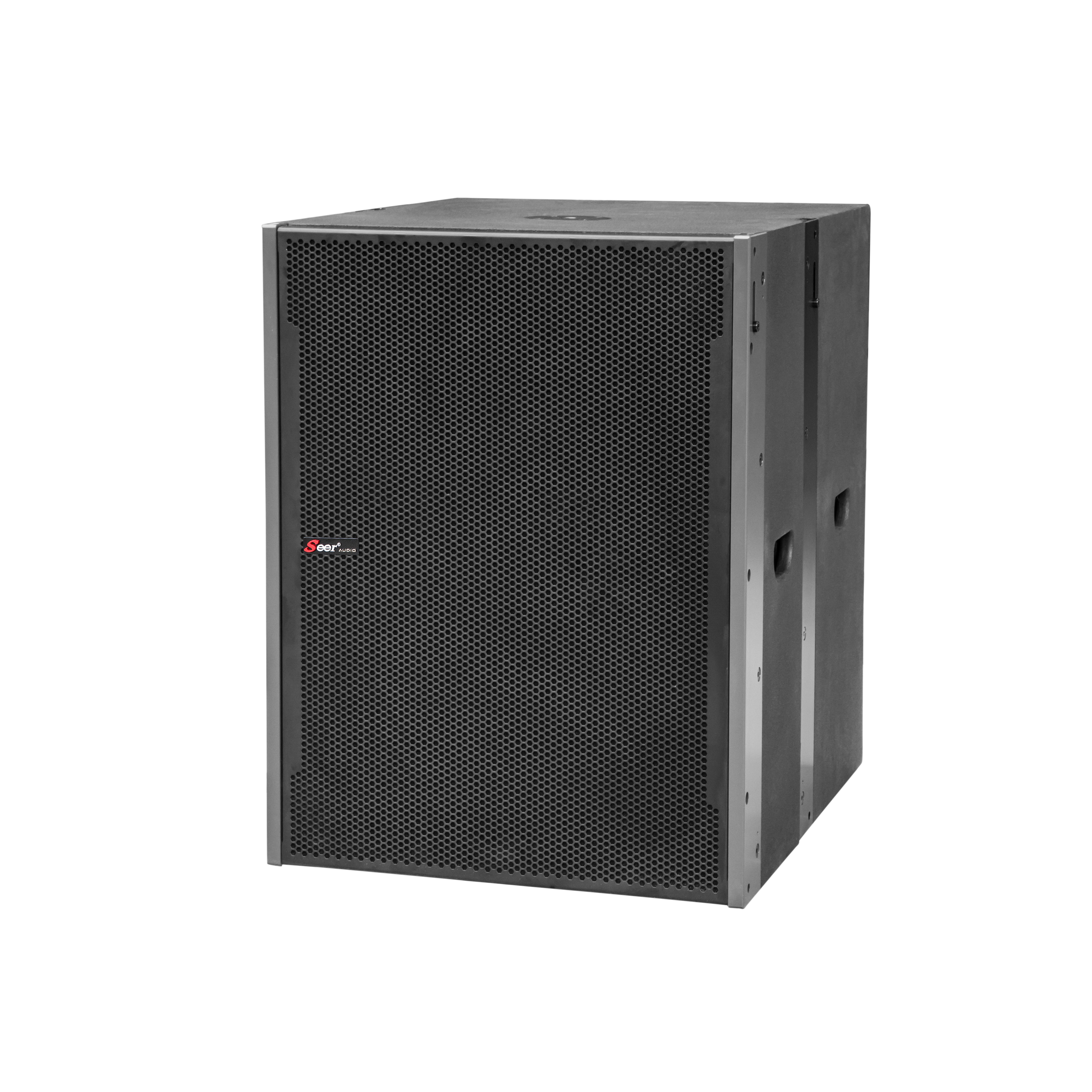

ModelNX-18BA
Frequency Response32Hz-250Hz
Impedance8 ohms
Long-term Power(RMS)700W
Power peak1400W
Sensitivity102dB
Maximum SPL126dB
Connection2×NL4speakon
Enclosure Construction18-Birch Plywood
Cabinet Surface TreatmentBlack Catalyzed Polyurethane Paint
Dimensions(H×W×D)740×565×671mm
Low18IN×1（460mm）
N.W.67kg
PowerAC220V/50Hz-60Hz
