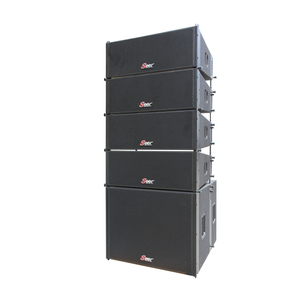

The W-12 have double 12"LF unit, double 2.5"compress driver. The system adopt advanced branching map technique,made MF and HF output the same quality SPL. The line array speaker system took over us more than 3 years to develop and improve. The speaker box and loudspeaker also are waterproof; it's suitable for outdoor place. It meets the need for a high power, high bass impact system that is versatile and scalable for a very wide range of applications in the live sound, corporate and fixed installation fields.
Features
3-way line array system.
High efficiency energy output.
Far coverage
Professional flying setting, safe and reliable
Fast install, waterproof and resist hot.
Applications
Big gymnasium, sporting place, all kind of performance movements Medium and large scale touring, theatre, club.

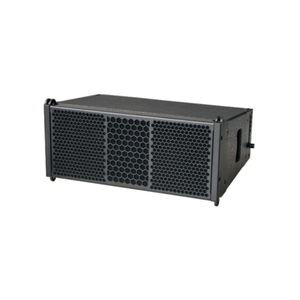

Model | W-12 |
Frequency Response | 50Hz-18KHz |
Directivity Angle | H90°×V10° |
Impedance | 8 ohms/ 8 ohms/8 ohms(HF.MF.LF) |
Long-term Power(RMS) | 240W/400W/600W(HF.MF.LF) |
Power peak | 480W/800W/1200W/5Min (HF.MF.LF) |
Sensitivity | 120 dB /112 dB /108dB(HF.MF.LF) |
Maximum SPL | 138 dB /130 dB /128dB(HF.MF.LF) |
Connection | 2×NL 8 speakon |
Enclosure Construction | 15-Birch Plywood |
Cabinet Surface Treatment | Black Catalyzed Polyurethane Paint |
Dimensions(H×W×D) | 400×1321×575mm |
Low | 12 IN×2(310mm) |
Mid | 8 IN x2(210mm) |
High | 2.5IN×2(51mm) |
N.W. | 85Kg |
Model | W-28 |
Frequency Response | 35Hz-250Hz |
Impedance | 4ohms |
Long-term Power(RMS) | 1600W |
Power peak | 3200W/5Min |
Sensitivity | 112dB(2.83V/m) |
Maximum SPL | 138dB |
Connection | 2×NL4speakon |
Enclosure Construction | 18-(Birch Plywood) |
Cabinet Surface Treatment | Black Catalyzed Polyurethane Paint |
Dimensions(H×W×D) | 550×1200×850mm |
Low | 18 IN×2(460mm) |
N.W. | 116Kg |
