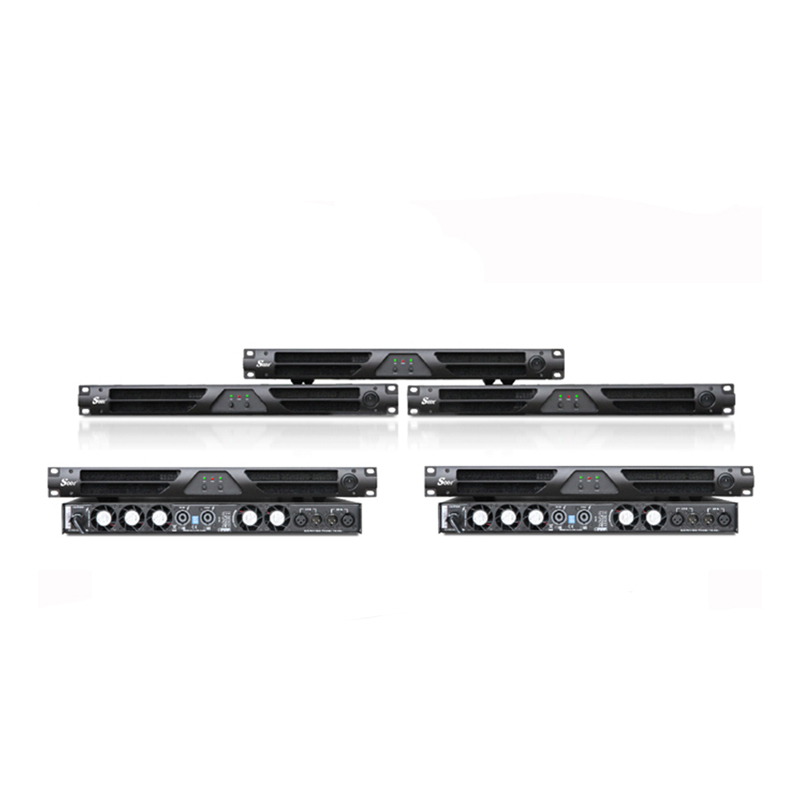

Product Characteristics CA series digital amplifier offer various power ratings in 3 models from 2×2890 watt/ch. @2 ohm to 2×7140 watt/ch @2 ohm, still maintaining the 1 unit size. Advantages of high efficiency * Low working temperature, reliability will be improved obviously. * The size and weight are only 1/3 of tradition amplifier. *The cost for transportation, handling, installation will reduce obviously. * Saving energy, reducing operating costs *Environmental protection
Performance overview 1. High efficiency and energy saving, operation cost is low. 2. Compact and light weight , structure is firm. 3. Comply with the safety and EMC standards. 4.90V-260V AC/50-60HZWide range power supply. 5. First-class quality, thanks for the components from international high-end manufacturers. 6. Temperature control fan for quiet operation. 7. Modular design and maintenance is convenient. 8. Very suitable for mobile show. 9. Reasonable design makes you feel relaxed in the process of using.

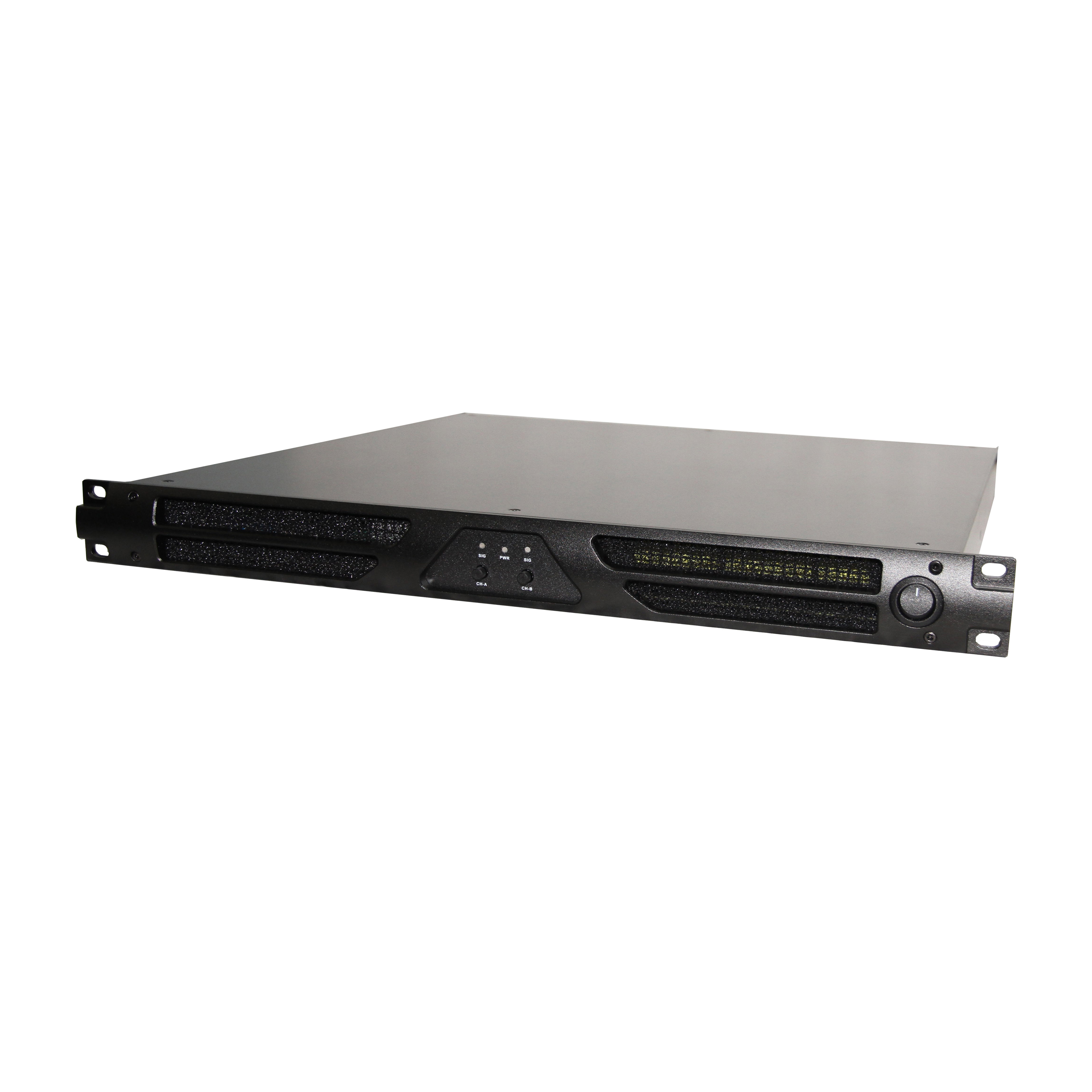

CA series digital amplifier offer various power ratings in 3 models from 2×2890 watt/ch. @2 ohm to 2×7140 watt/ch @2 ohm, still maintaining the 1 unit size.
Advantages of high efficiency
* Low working temperature, reliability will be improved obviously.
* The size and weight are only 1/3 of tradition amplifier.
*The cost for transportation, handling, installation will reduce obviously.
* Saving energy, reducing operating costs
*Environmental protection
Performance overview
1. High efficiency and energy saving, operation cost is low.
2. Compact and light weight , structure is firm.
3. Comply with the safety and EMC standards.
4.90V-260V AC/50-60HZWide range power supply.
5. First-class quality, thanks for the components from international
high-end manufacturers.
6. Temperature control fan for quiet operation.
7. Modular design and maintenance is convenient.
8. Very suitable for mobile show.
9. Reasonable design makes you feel relaxed in the process of using.
Model
CA-2.1
CA-2.2
CA-2.3
Rated Output Power
（THD+N=1%,1kHz continue sine wave, all channel driving）
8Ω/Stereo
2×1000W
2×2000W
2×3000W
4Ω/Stereo
2×1700W
2×3400W
2×5100W
2Ω/Stereo
2×2890W
2×5780W
2×5780W
16Ω/Bridge
1×2000W
1×4000W
1×6000W
8Ω/Bridge
1×3400W
1×6800W
1×10200W
4Ω/Bridge
1×5780W
1×11560W
1×14280W
Output RMS voltage[THD+N=1%,1kHz]
89.4V
126.5V
154.9V
Slew rate[ 1kHz,low-pass filter bypassed]
50V/uS
Sensitivity(Rated Power,1kHz)
Selectable
32dB,35dB,38dB,41dB
Selectable
38dB,35dB,32dB,29dB
THD+N(10% Rated Power,typical]
0.01%
IMD-SMPTE(10% Rated Power,typical)
0.01%
DIM30(10%Rated Power,typical]
0.01%
Cross-talk
(20Hz-1kHz,below Rated Power]
≥90dB
Frequency Response
[10%Rated Power, 20Hz-20KHz,8Ω]
±0.2dB
Input impedance
20kΩ(Balance)，10kΩ(Unbalance
Damp factor[8Ω,20Hz-200Hz)
≥3537 （8Ω,20Hz-200Hz）
SNR
≥109dB
≥115dB
≥112dB
Main Power
90~260VAC,50~60Hz
Protection
Under voltage, DC,Over temperature, Over load limiter, Short protection.
