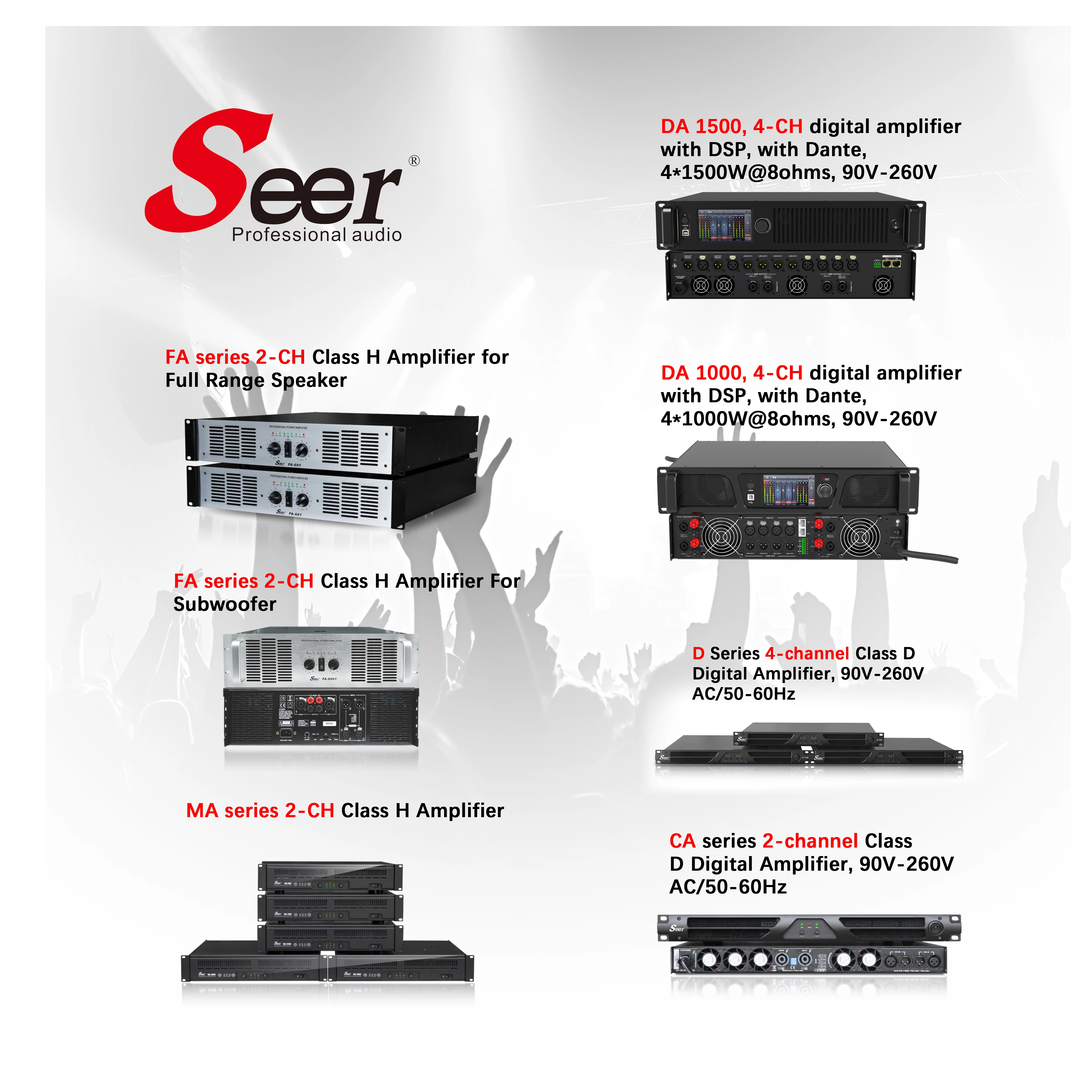

Seer Audio Professional Amplifier
DA Series 4-ch Digital Amplifier with DSP with Dante
Product DA-1000\ DA-1000 Dante Amplifierchannels 4 Outputpower 4Ω 8Ω 1600W 1000W bridge 2*3200watts 100Voutput power bridge model, 100V(2*max 1250W) 70Voutput power 70V(4*max 1225W) Max.output voltage 89V Max.output current 20A Min.load output 4Ω/channel Input connector 4 * XLR Output connector 4*speakOn, 4*binding post Max.input level 20dBu/7.75V Sensitivity 12dBu (29.3dB, x29) 6dBu (35.5dB, x58.2) 0dBu (41.3dB, x116) SNR 100dB@12dBu, 1kHz Frequency response 20Hz to 20kHz (±0.5dB) @1W, 8Ω THD+N <1%@1W, 8Ω Sampling 48k / 24bit Dante in option 4 input channels Display 4.3’ IPS touch display Protections DSP limiter,high temperature , DC , high frequency, short circuit, back EMF,
peak current limiter, Back EMF, Surge current limiter, startup delay, power
circuit breaker protection, power over voltage/under voltage protection
PC control software Mconsole Power requirement VAC180~264 50/60Hz Device Net weight 12.35kg, 485mm*460mm*90mm Package Gross weight 16.4kg, 590mm*585mm*165mm
D Series Class D Digital Amplifier
D-500 D-700 D-900 D-1100 Rated Output Power（THD+N=1%,1kHz continue
sine wave, allchannel driving）
8Ω/Stereo 4×300W 4×500W 4×1000W 4×1500W 4Ω/Stereo 4×465W 4×850W 4×1700W 4×2550W 2Ω/Stereo 4×800W 4×1445W 4×2890W 4×2750W 16Ω/Bridge 2×600W 2×1000W 2×2000W 2×3000W 8Ω/Bridge 2×900W 2×1700W 2×3400W 2×5100W 4Ω/Bridge 4×1550W 2×2890W 2×5780W 2×7140W Output RMS voltage[THD+N=1%,1kHz] 48.7V 63.2V 89.4V 109.5V Slew rate[ 1kHz,low-pass filter bypassed] 50V/uS Sensitivity(Rated Power,1kHz) Selectable Selectable THD+N(10% Rated Power,typical] 0.0001 IMD-SMPTE(10% Rated Power,typical) 0.0001 DIM30(10%Rated Power,typical] 0.0001 Cross-talk(20Hz-1kHz,below Rated Power] ≥90dB Input impedance 20kΩ(Balance)，10kΩ(Unbalance) Damp factor[8Ω,20Hz-200Hz) ≥3537 （8Ω,20Hz-200Hz） SNR ≥104dB ≥105dB ≥109dB ≥110dB Main Power 90~260VAC,50~60Hz Protection Under voltage, DC,Over temperature, Over load limiter, Short protection. Dimensions (W×D×H) 483×44×370mm 483×44×370mm 483×44×370mm 483×44×465mm Weight 9kg 9kg 10kg 13kg
CA Series 2-CH Digital Amplifier
Model CA-2.1 CA-2.2 CA-2.3 Rated Output Power（THD+N=1%,1kHz continue
sine wave, all channel driving）
8Ω/Stereo 2×1000W 2×2000W 2×3000W 4Ω/Stereo 2×1700W 2×3400W 2×5100W 2Ω/Stereo 2×2890W 2×5780W 2×5780W 16Ω/Bridge 1×2000W 1×4000W 1×6000W 8Ω/Bridge 1×3400W 1×6800W 1×10200W 4Ω/Bridge 1×5780W 1×11560W 1×14280W Output RMS voltage[THD+N=1%,1kHz] 89.4V 126.5V 154.9V Slew rate[ 1kHz,low-pass filter bypassed] 50V/uS Sensitivity(Rated Power,1kHz) Selectable 32dB,35dB,38dB,41dB THD+N(10% Rated Power,typical] 0.01% IMD-SMPTE(10% Rated Power,typical) 0.01% DIM30(10%Rated Power,typical] 0.01% Cross-talk ≥90dB Frequency Response ±0.2dB Input impedance 20kΩ(Balance)，10kΩ(Unbalance) Damp factor[8Ω,20Hz-200Hz) ≥3537 （8Ω,20Hz-200Hz） SNR ≥109dB ≥115dB ≥112dB Main Power 90~260VAC,50~60Hz Protection Under voltage, DC,Over temperature, Over load limiter, Short protection. Dimensions (W×D×H) 483×44×370mm 483×44×370mm 483×44×465mm Weight 9kg 10kg 13kg
FA Series Full Range Speaker
Model
FA-601
FA-1201
FA-2401
FA-4801
8 Ohms Output /Stereo
2x400W
2x600W
2x800W
2x1000W
4 Ohms Output /Stereo
2x600W
2x900W
2x1200W
2x1500W
8ohms Output /Bridging
1x1200W
1x1800W
1x2400W
1x3000W
Output Circuit
ClassAB/H
Rated Power
20Hz-20KHz(0.5dB/-0.5dB)
Frequency Response
20Hz-20KHz(士0.2dB)
Slew Rate
≥45v/us
Damping Coefficient
≥1000@8ohms
Input Resistance
20Kohms(balanced)/10Kohms(unbalanced)
Phase Response
20Hz+4°20KHz-8°
Clip Protection
Up to 4V
S/n Ratio(8ohms)
≥105dB
Crosstalk
＞85dB@8ohms
Totalharmonics
≤0.1%@8ohms
Distortion
≤0.2%@8ohms
Input Sensitivity
0.775V/1.44V
Input Connector
2 x 3-pin XLR female/2x 3-pin XLR male
Output Connector
2x NL4FXfour-core speaker connector/red positive and black negative binding posts
Power Connector
AC220V(50Hz-60Hz)
Control/Front Panel
AC-Switch
Surface Treatment
Black painted chassis, black painted/aluminum front panel
Protection System
DC, short circuit, overheating, soft start, output/input overload protection
Cooling System
Smart temper ature controlled continuously variable speed fan for front-to-back airflow
Product Size(Wxdxh)
483x385x88mm
Product Weight(Kg)
13.2kg
14.2kg
15.3kg
16.4kg
FA Series Subwoofer Speaker
FA-5001 FA-8001 FA-9001 8Ω output power/stereo 2×1300W 2×1800W 2×2000W 8Ωoutput power/stereo 2×2000W 2×2400W 2×3000W 4Ωoutput power/stereo 2×2400W 2×2900W 2×3600W 8Ωoutput power/bridging 1×3900W 1×4800W 1×6000W 4Ωoutput power/bridging 1×4900W 1×5800W 1×7200W Output circuit Class H Rated power 20Hz-20KHz(+0/-0.5dB) Conversion rate ≥40V/us Damping coefficient ﹥550@8Ω Input impedance 20KΩ(balanced)/10KΩ(unbalanced) Phase response ﹥100dB@8Ω1KHz Limiting protection Can reach 4V Signal to noise ratio (rated power 8Ω) ≥105dB Separation degree >85dB@8Ω1KHz Total harmonic distortion (half power) ﹤0.05%@8Ω1KHz Intermodulation distortion (half power) ≤0.2% Input sensitivity 0.775V/1.0V/1.44V Input connector 2× three core XLR female seat/2× three core XLR male seat Output connector 2×NL4FX four core audio connector red positive black negative terminal Power connector AC220V(50Hz-60Hz) Control and indication/front panel AC switch,pow power light(white to blue)SIG signal light(green)CLP distortion signal light(yellow)POR protection light(red) Surface treatment Black painted chassis, black painted/aluminum front panel Protection system DC, short circuit, overheating, soft start output/input overload protection Cooling system Intelligent temperature controlled continuous variable speed fan, with front to back air flow Product volume 0.05m³ Product height 2U 3U Product size(W×D×H) 483×450×88mm 483×450×88mm 483×450×88mm Packaging size(W×D×H) 550×522×132mm 550×522×132mm 550×522×132mm Product weight(kg) 22.8kg 23.74kg 38.78kg Packaging weight(kg) 23.8kg 24.74kg 39.8kg
MA Series 2-CH Class H Amplifier
Model MA-600 MA-1200 MA-2400 MA-3600 MA-5000 Output Stereo 8Ω 350W×2 450W×2 550W×2 700W×2 900W×2 4Ω 530W×2 680W×2 830W×2 1050W×2 1350W×2 Bridge 8Ω 1060W 1360W 1660W 2100W 2700W Output Connections Binding Binding Binding Speakon & Binding Speakon & Binding Frequency Response 20Hz-20KHz,±0.5dB Input Sensitivity 0.77V Input Impedance 20KΩ/Balanced,10KΩ/un-Balanced S/N Ratio = 95dB = 98dB THD 0.0003 0.0005 Crosstalk @ Rated Output/8Ω/1KHz >70dB >62dB Damping Factor/ 8Ω/1KHz >240 >280 Slew Rate 15V/uS Protection Soft Start, Short Circuit, Limiter, DC Fault,AC Line Fuse, Thermal Cut Cooling system Two steps speed fan Mains Power supply AC:220V-230V 50HZ-60Hz Weight 10.5kg 11.5kg 12.5kg 15.2kg 16.5kg Dimensions (W×D×H) 482×307×88mm 482×307×88mm 482×307×88mm 482×436.5×88mm 482×436.5×88mm
