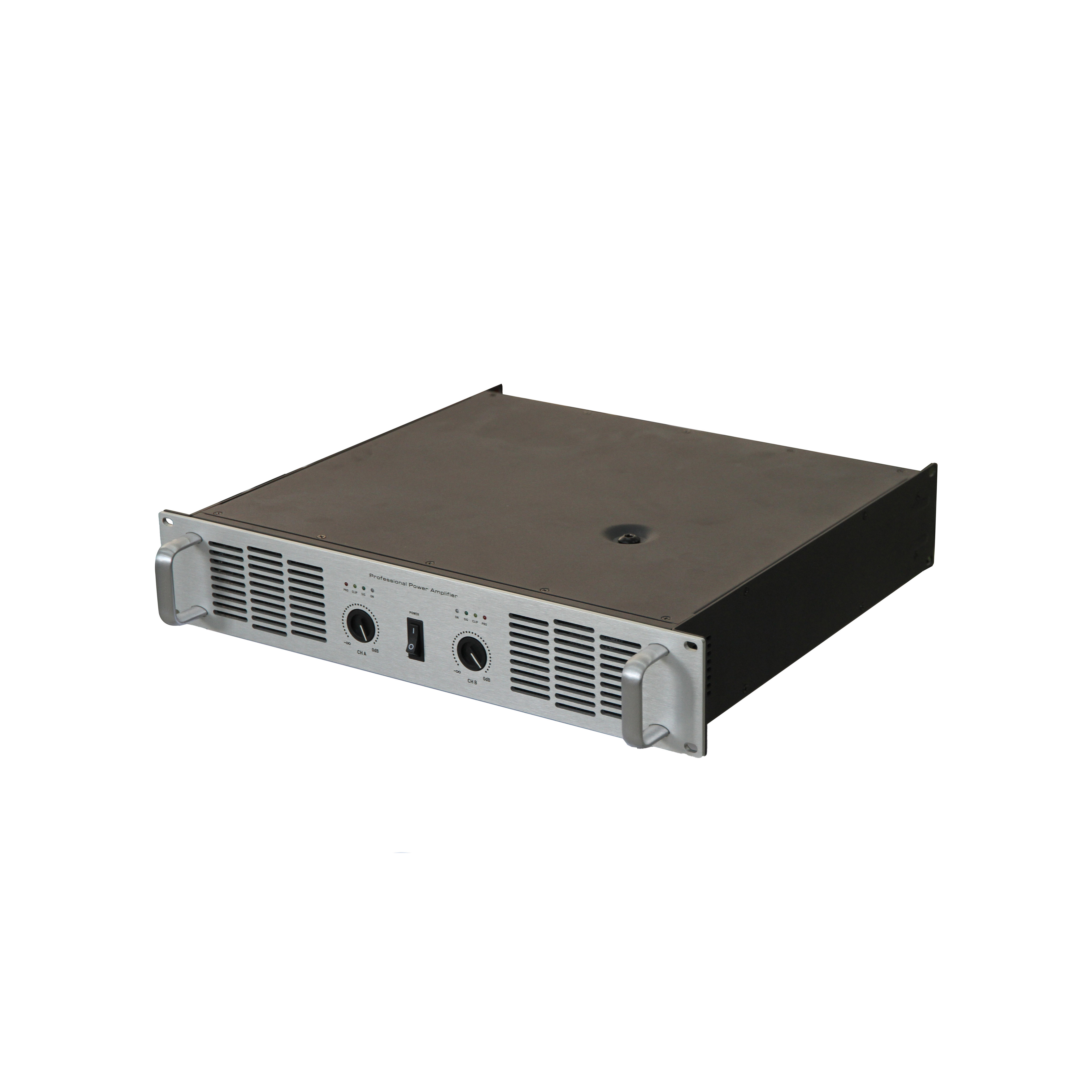

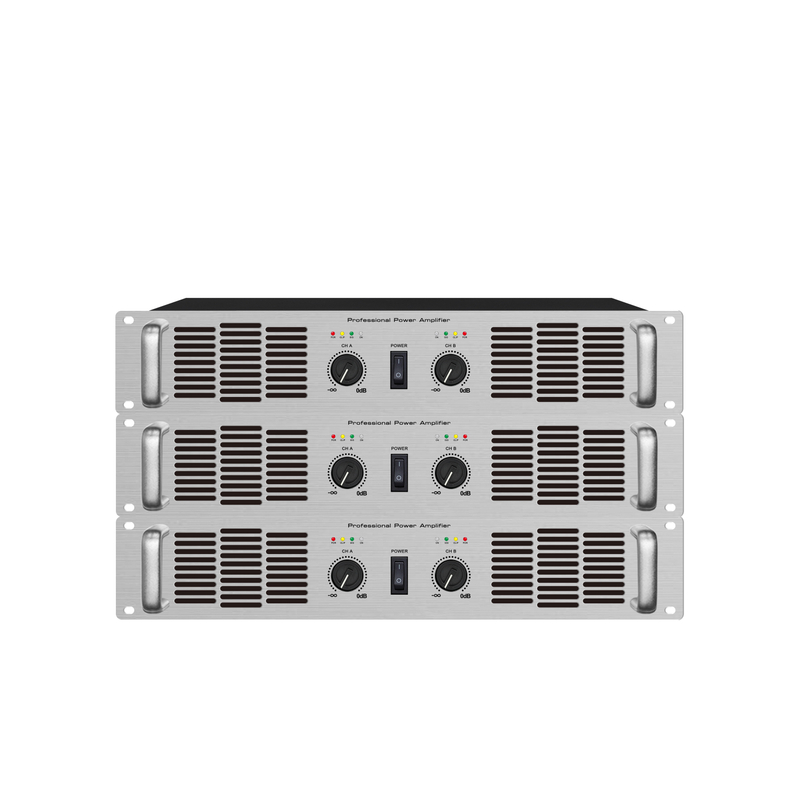

Characteristics: FA series is the professional two-channel Analog amplifier used Class H amplification circuit with RMS equal, which offer more efficiency, more power and less heat. lt is offer various power ratings in 4 models from 2x530watt/ch. @ 4 ohm to 2x1400watts/ch @ 4 ohm.
Features 1.Professional aluminum metal cabinet shows its stability,reliability, and fascination. 2.Advanced output H-class circuit ensuring perfect sound quality condition, and the power and eficiency are higher than the conventional AB-class circuit. 3.Effective heat dissipation system, comprising a high surface area of the heat sink, a pair of dual cooling fan to ensure a rapid and reliablecooling.Good quality and rugged construction for most of the expansion of applications are ideal power amplifer. Al amplifer are similar inoperation. the manual applies to all modes. The manual contains very important informaton, so in the connection or operation of your amplifercarefully read the manual. 4.The unit has consummate working staus indications including, you can be clear at aglance of the working status through the LED indicator in the front panel of the amplifier, the letthe operation more easily. 5. Perfect Protection Circuit Design: A. Soft start. B. Over temperature protection. C.Over lad protection. D. Short Circuit Limited Protection. E. AC Line fuse F. Limiter Protection. G. DC protection. H. Thermal cut.
FA series is the professional two-channel Analog amplifier used Class H amplification circuit with RMS equal, which offer more efficiency, more power and less heat. lt is offer various power ratings in 4 models from 2x530watt/ch. @ 4 ohm to 2x1400watts/ch @ 4 ohm.
Features
1.Professional aluminum metal cabinet shows its stability,reliability, and fascination.
2.Advanced output H-class circuit ensuring perfect sound quality condition, and the power and eficiency are higher than the conventional AB-class circuit.
3.Effective heat dissipation system, comprising a high surface area of the heat sink, a pair of dual cooling fan to ensure a rapid and reliablecooling.Good quality and rugged construction for most of the expansion of applications are ideal power amplifer. Al amplifer are similar inoperation. the manual applies to all modes. The manual contains very important informaton, so in the connection or operation of your amplifercarefully read the manual.
4.The unit has consummate working staus indications including, you can be clear at aglance of the working status through the LED indicator in the front panel of the amplifier, the letthe operation more easily.
5. Perfect Protection Circuit Design:
A. Soft start.
B. Over temperature protection.
C.Over lad protection.
D. Short Circuit Limited Protection.
E. AC Line fuse
F. Limiter Protection.
G. DC protection.
H. Thermal cut.
Model
FA-60
FA-1201
FA-2401
FA-4801
8 Ohms Output /Stereo
2x400W
2x600W
2x800W
2x1000W
4 Ohms Output /Stereo
2x600W
2x900W
2x1200W
2x1500W
8ohms Output /Bridging
1x1200W
1x1800W
1x2400W
1x3000W
Output Circuit
ClassAB/H
Rated Power
20Hz-20KHz(0.5dB/-0.5dB)
Frequency Response
20Hz-20KHz(士0.2dB)
Slew Rate
≥45v/us
Damping Coefficient
≥1000@8ohms
Input Resistance
20Kohms(balanced)/10Kohms(unbalanced)
Phase Response
20Hz+4°20KHz-8°
Clip Protection
Up to 4V
S/n Ratio(8ohms)
≥105dB
Crosstalk
＞85dB@8ohms
Totalharmonics
≤0.1%@8ohms
Distortion
≤0.2%@8ohms
Input Sensitivity
0.775V/1.44V
Input Connector
2 x 3-pin XLR female/2x 3-pin XLR male
Output Connector
2x NL4FXfour-core speaker connector/red positive and black negative binding posts
Power Connector
AC220V(50Hz-60Hz)
Control/Front Panel
AC-Switch
Surface Treatment
Black painted chassis, black painted/aluminum front panel
Protection System
DC, short circuit, overheating, soft start, output/input overload protection
Cooling System
Smart temper ature controlled continuously variable speed fan for front-to-back airflow
