Characteristics: FA series is the professional two-channel Analog amplifier used Class Hamplification circuit with RMS equal, which offer more efficiency, more powerand less heat. It is offer various power ratings in 2 models from 2x2000watt/ch.@ 4 ohm to 2x2200 watts/ch @ 4 ohm.
Features 1.Professional aluminum metal cabinet shows its stability,reliability, and fascination. 2.Advanced output H-class circuit ensuring perfect sound quality condition, and the power and eficiency are higher than the conventional AB-class circuit. 3.Effective heat dissipation system, comprising a high surface area of the heat sink, a pair of dual cooling fan to ensure a rapid and reliablecooling.Good quality and rugged construction for most of the expansion of applications are ideal power amplifer. Al amplifer are similar inoperation. the manual applies to all modes. The manual contains very important informaton, so in the connection or operation of your amplifercarefully read the manual. 4.The unit has consummate working staus indications including, you can be clear at aglance of the working status through the LED indicator in the front panel of the amplifier, the letthe operation more easily. 5. Perfect Protection Circuit Design: A. Soft start. B. Over temperature protection. C.Over lad protection. D. Short Circuit Limited Protection. E. AC Line fuse F. Limiter Protection. G. DC protection. H. Thermal cut.
FA series is the professional two-channel Analog amplifier used Class Hamplification circuit with RMS equal, which offer more efficiency, more powerand less heat. It is offer various power ratings in 2 models from 2x2000watt/ch.@ 4 ohm to 2x2200 watts/ch @ 4 ohm.
Features
1.Professional aluminum metal cabinet shows its stability,reliability, and fascination.
2.Advanced output H-class circuit ensuring perfect sound quality condition, and the power and eficiency are higher than the conventional AB-class circuit.
3.Effective heat dissipation system, comprising a high surface area of the heat sink, a pair of dual cooling fan to ensure a rapid and reliablecooling.Good quality and rugged construction for most of the expansion of applications are ideal power amplifer. Al amplifer are similar inoperation. the manual applies to all modes. The manual contains very important informaton, so in the connection or operation of your amplifercarefully read the manual.
4.The unit has consummate working staus indications including, you can be clear at aglance of the working status through the LED indicator in the
front panel of the amplifier, the letthe operation more easily.
5. Perfect Protection Circuit Design:
A. Soft start.
B. Over temperature protection.
C.Over lad protection.
D. Short Circuit Limited Protection.
E. AC Line fuse
F. Limiter Protection.
G. DC protection.
H. Thermal cut.
Model
FA-5001

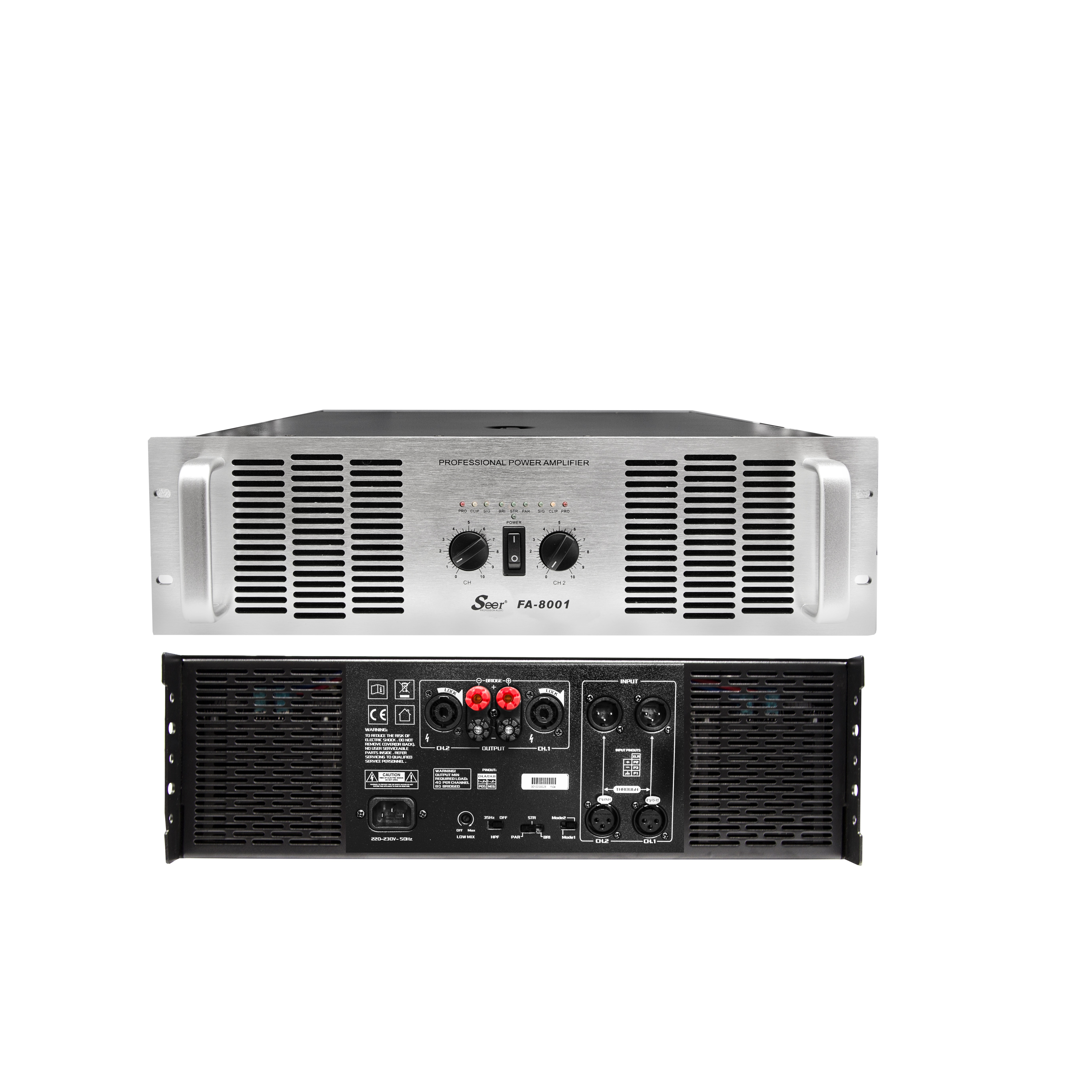

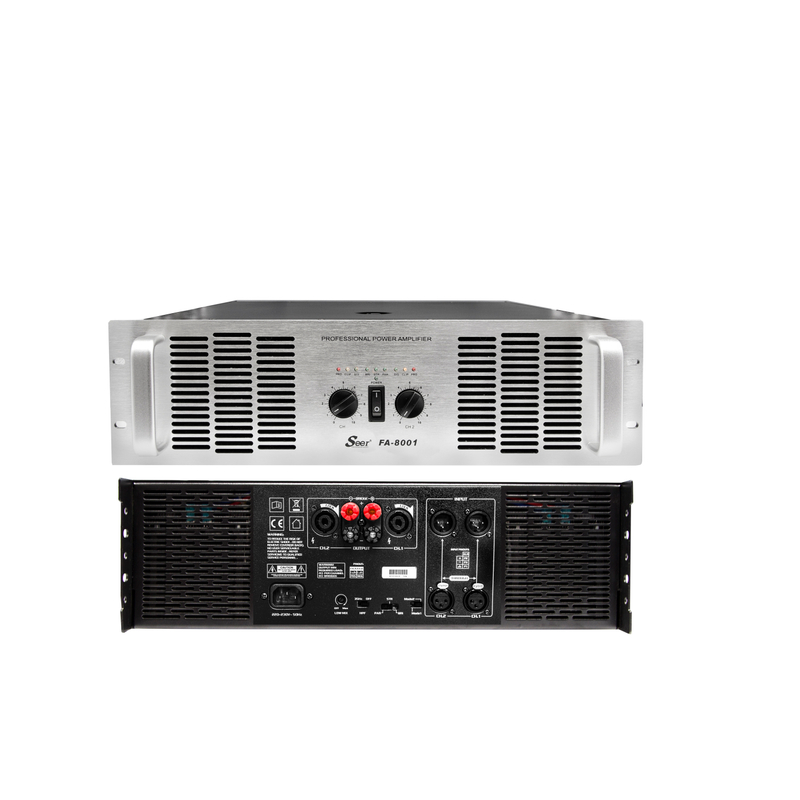

FA-8001
8Ω output power/stereo
2×1300W
2×1800W
8Ωoutput power/stereo
2×2000W
2×2400W
4Ωoutput power/stereo
2×2400W
2×2900W
8Ωoutput power/bridging
1×3900W
1×4800W
4Ωoutput power/bridging
1×4900W
1×5800W
Output circuit
Class H
Rated power
20Hz-20KHz(+0/-0.5dB)
Conversion rate
≥40V/us
Damping coefficient
﹥550@8Ω
Input impedance
20KΩ(balanced)/10KΩ(unbalanced)
Phase response
﹥100dB@8Ω1KHz
Limiting protection
Can reach 4V
Signal to noise ratio
(rated power 8Ω)
≥105dB
Separation degree
>85dB@8Ω1KHz
Total harmonic distortion
(half power)
﹤0.05%@8Ω1KHz
Intermodulation distortion
(half power)
≤0.2%
Input sensitivity
0.775V/1.0V/1.44V
Input connector
2× three core XLR female seat/2× three core XLR male seat
Output connector
2×NL4FX four core audio connector red positive black negative terminal
Power connector
AC220V(50Hz-60Hz)
Control and indication/front panel
AC switch,pow power light(white to blue)SIG signal light(green)CLP distortion signal light(yellow)POR protection light(red)
Surface treatment
Black painted chassis, black painted/aluminum front panel
Protection system
DC, short circuit, overheating, soft start output/input overload protection
Cooling system
Intelligent temperature controlled continuous variable speed fan, with front to back air flow
