Product Characteristics D series digital amplifier offer various power ratings in 4 models from 4x800watt/ch. @ 2 ohm to 4x3570 watts/ ch @ 2 ohm, still maintaining the 1 unit size.
Advantages of high efficiency
Low working temperature, reliability will be improved obviously. The size and weight are only 1/3 of tradition amplifier The cost for transportation, handling, installation will reduce obviously Saving energy, reducing operating costs Environmental protection
Performance overview
1.High efficiency and energy saving, operation cost is low. 2.Compact and light weight , structure is firm. 3. Comply with the safety and EMC standards. 4.90V-260V AC/50-60HZ Wide range power supply. 5. First-class quality, thanks for the components from internationalhigh-end manufacturers. 6. Temperature control fan for quiet operation. 7.Modular design and maintenance is convenient. 8. Very suitable for mobile show. 9. Reasonable design makes you feel relaxed in the process of using.
D series digital amplifier offer various power ratings in 4 models from 4x800watt/ch. @ 2 ohm to 4x3570 watts/ ch @ 2 ohm, still maintaining the 1 unit size.
Advantages of high efficiency
Low working temperature, reliability will be improved obviously.
The size and weight are only 1/3 of tradition amplifier
The cost for transportation, handling, installation will reduce obviously
Saving energy, reducing operating costs
Environmental protection
Performance overview
1. High efficiency and energy saving, operation cost is low.
2. Compact and light weight , structure is firm.
3. Comply with the safety and EMC standards.
4.90V-260V AC/50-60HZ Wide range power supply.
5. First-class quality, thanks for the components from internationalhigh-end manufacturers.
6. Temperature control fan for quiet operation.
7.Modular design and maintenance is convenient.
8. Very suitable for mobile show.
9. Reasonable design makes you feel relaxed in the process of using.

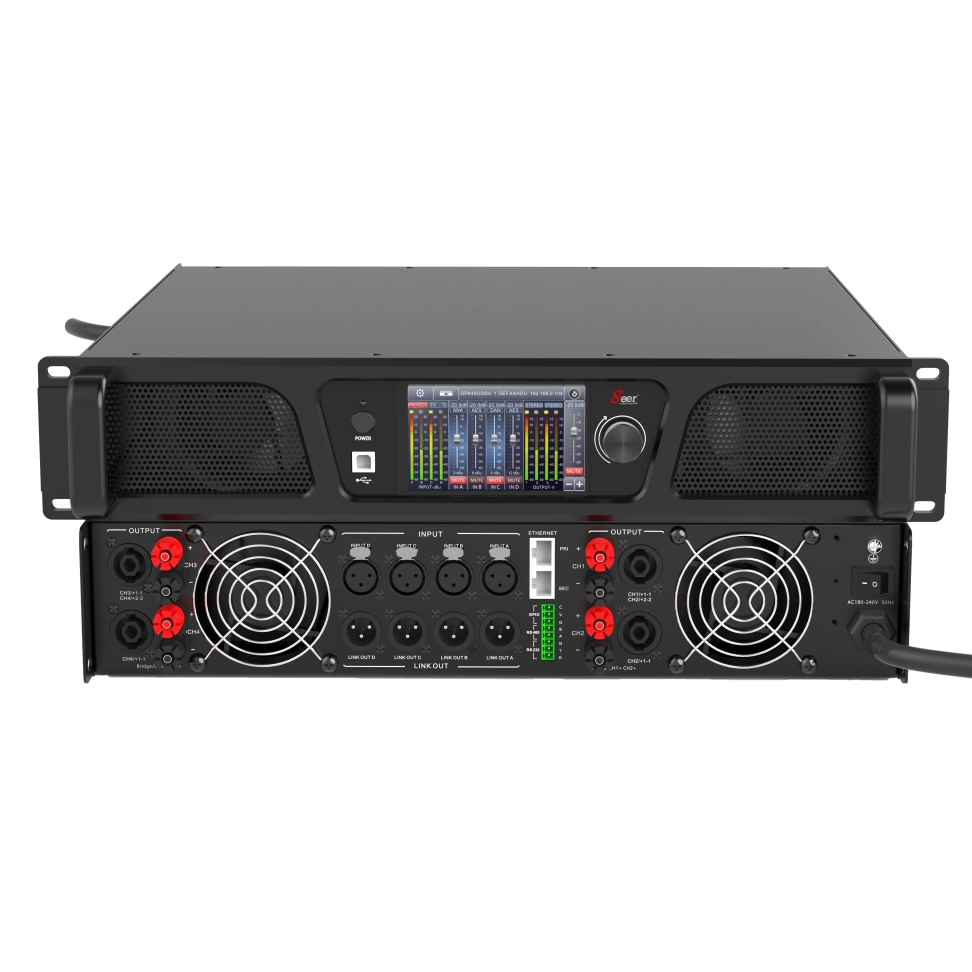

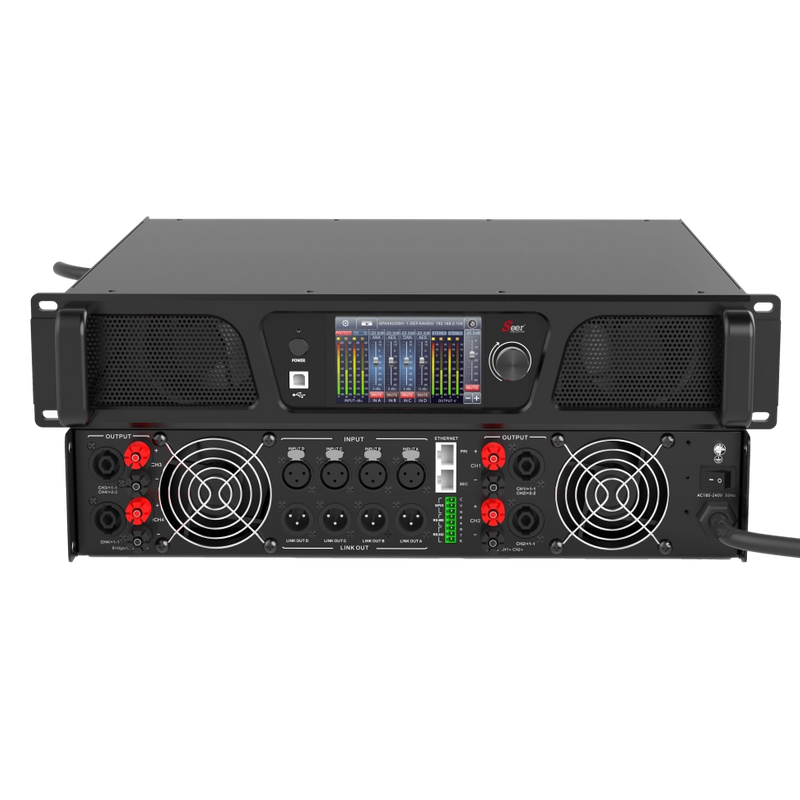

Product
DA-1000\ DA-1000 Dante
Amplifierchannels
4
Outputpower
4Ω
8Ω
1600W
1000W
bridge 2*3200watts
100Voutput power
bridge model, 100V(2*max 1250W)
70Voutput power
70V(4*max 1225W)
Max.output voltage
89V
Max.output current
20A
Min.load output
4Ω/channel
Input connector
4 * XLR
Output connector
4*speakOn, 4*binding post
Max.input level
20dBu/7.75V
Sensitivity
12dBu (29.3dB, x29)
6dBu (35.5dB, x58.2)
0dBu (41.3dB, x116)
SNR
100dB@12dBu, 1kHz
Frequency response
20Hz to 20kHz (±0.5dB) @1W, 8Ω
THD+N
<1%@1W, 8Ω
Sampling
48k / 24bit
Dante in option
4 input channels
Display
4.3’ IPS touch display
Protections
DSP limiter,high temperature , DC , high frequency, short circuit, back EMF,
peak current limiter, Back EMF,Surge current limiter, startup delay, power
circuit breaker protection, power over voltage/under voltage protection
