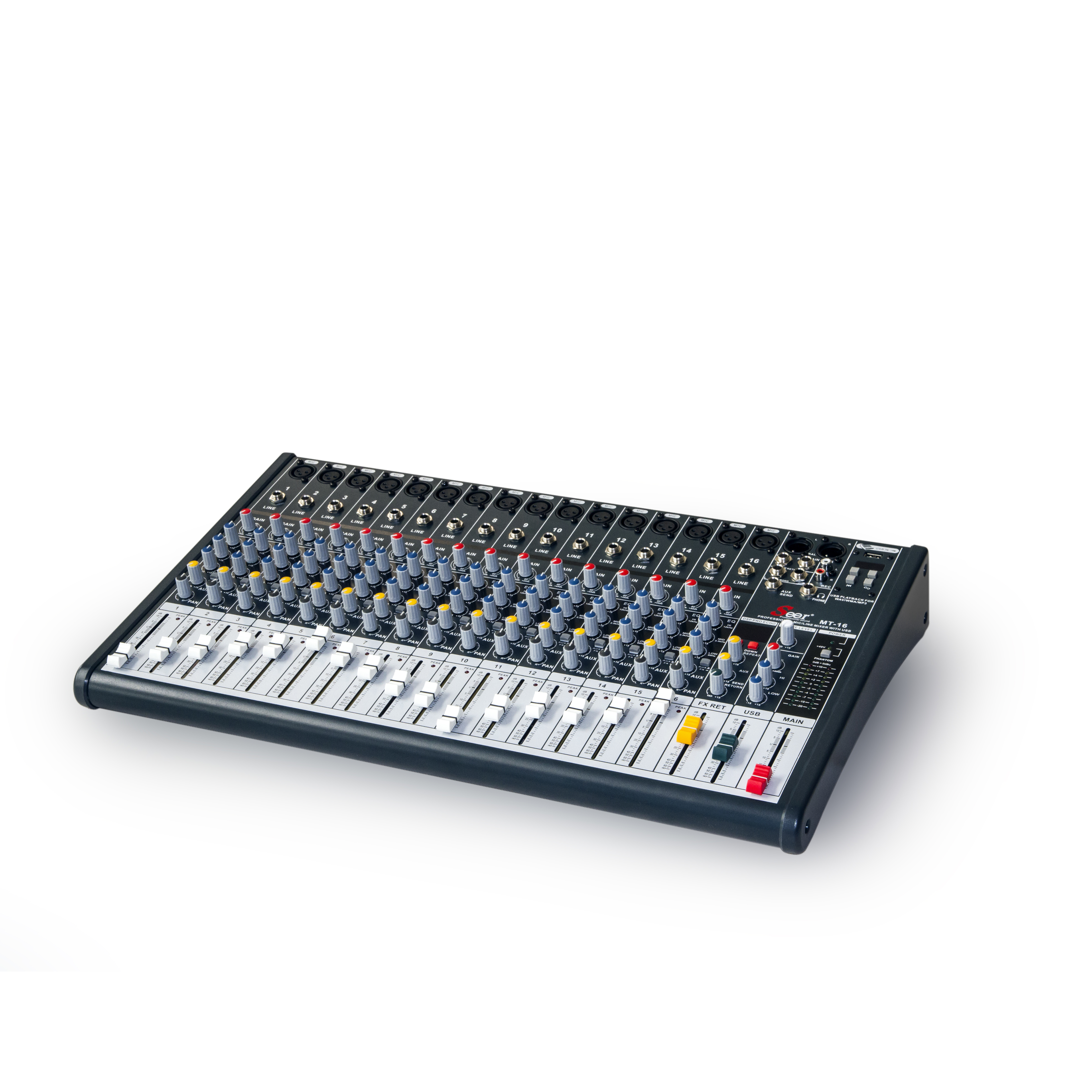

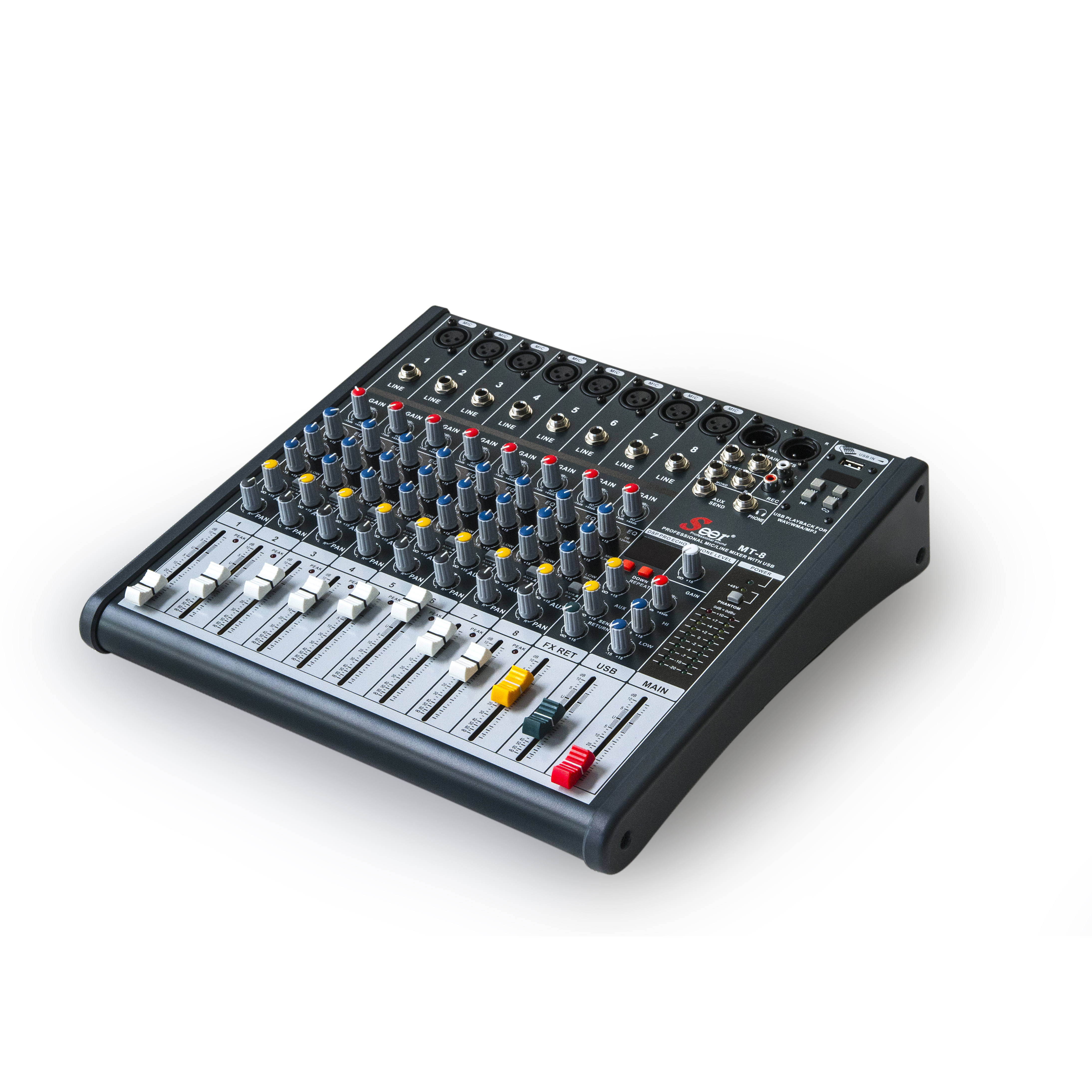

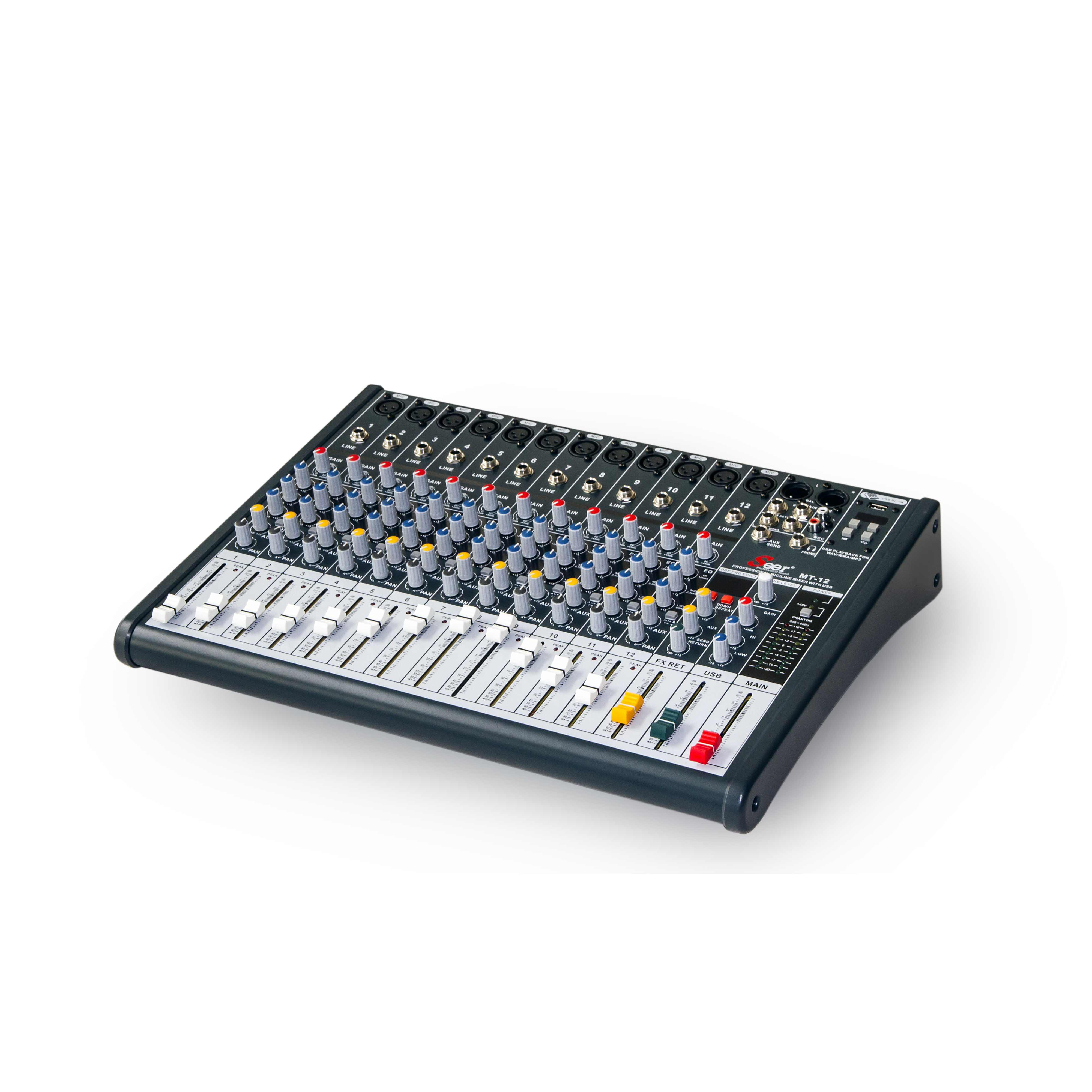

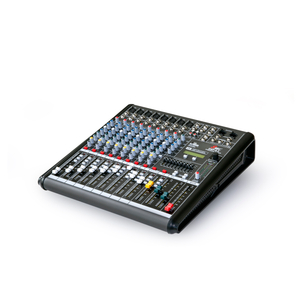

MT Series Analog Mixer Active Line Array System 8/12/16 Channel

Mic inc

+22dBu

All Other inputs

+22dBu

Main Mix TRS out and XLR out

+28dBu

All other outputs

+22dBu

Total harmonic distortion(THD)

(1 kHz 35dB gain,20Hz-20kHz bandwidth)

Mic in to insert out

＜0.005%

Noise:

-86 dBu

Signal to Noise Ratio

82db

80db

80db

Equivalent input noise(EIN)

150 ohm termination:

-129.5dBu 20Hz-20kHz

Attenuation(Crosstalk)

Channel Mute switch engaged:

-82 dBu

Channel Gain knob down:

-82 dBu

Frequency response

20Hz-40Khz     +0dB/-1dB

20Hz-60Khz    +0dB/-3Db

CMRR

Impedances

1kHz       better than -70dB

Mic in :

2.5kilohms

Channel insert return:

2.5kilohms

All other inputs:

10kilohms or greater

Tape out:

1.1kilohms

All other outputs:

120  ohms

EQ

High Shelving :

±15db@12kHz

Mid sweep:

±15db@240-6kHz

Mid Shelving:

±15db

Low shelving:

±15db@80Hz
