Performance features:

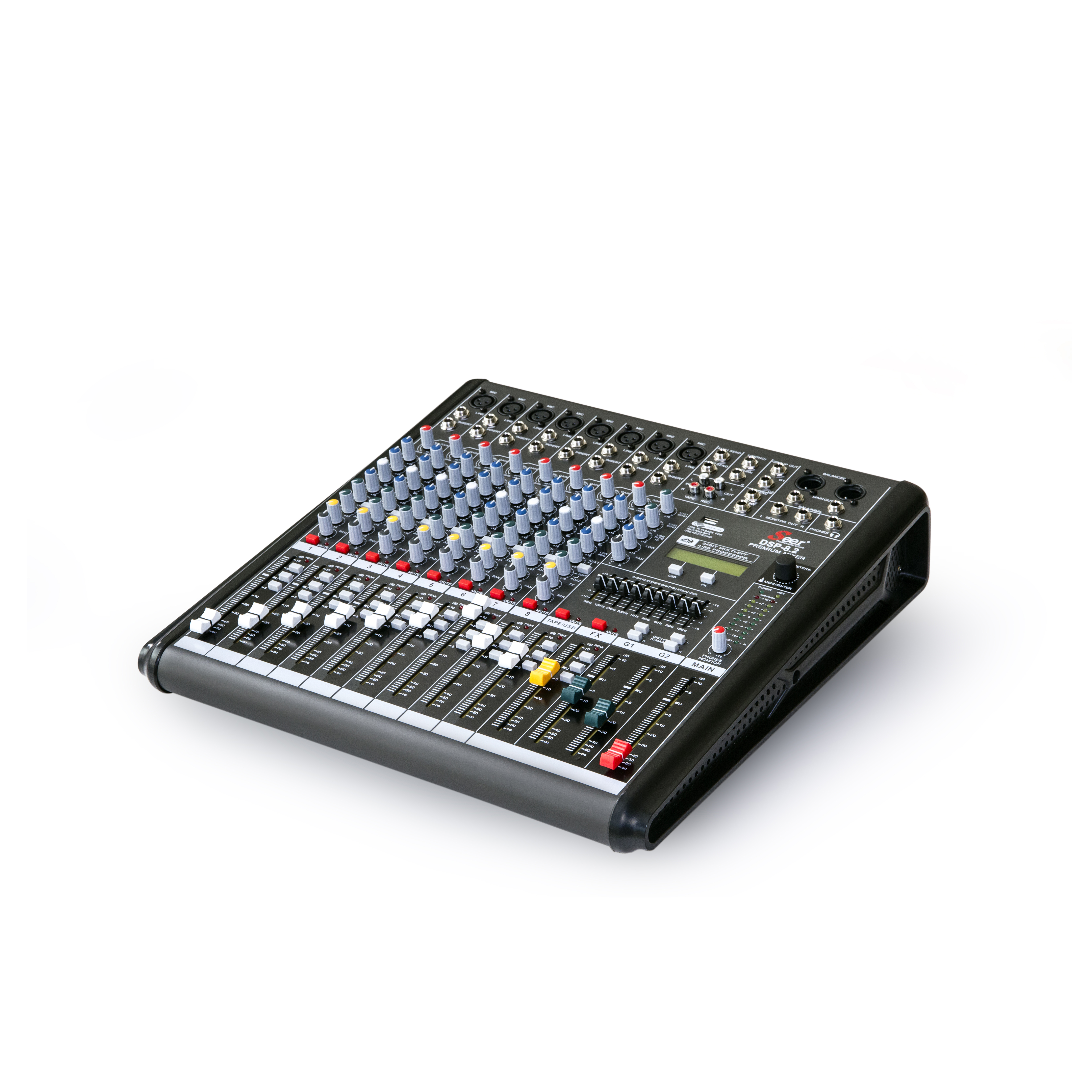

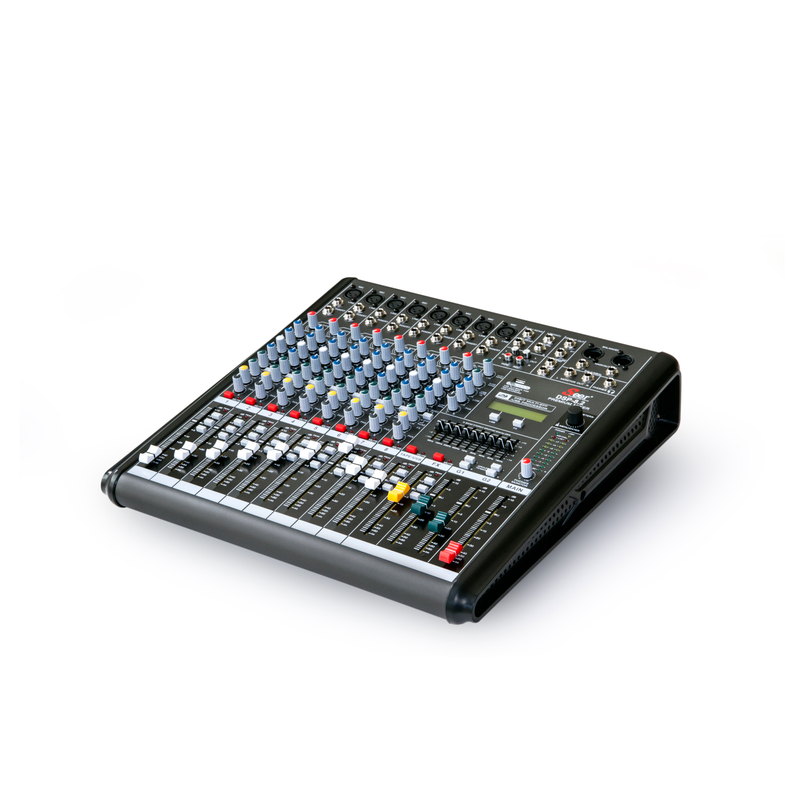

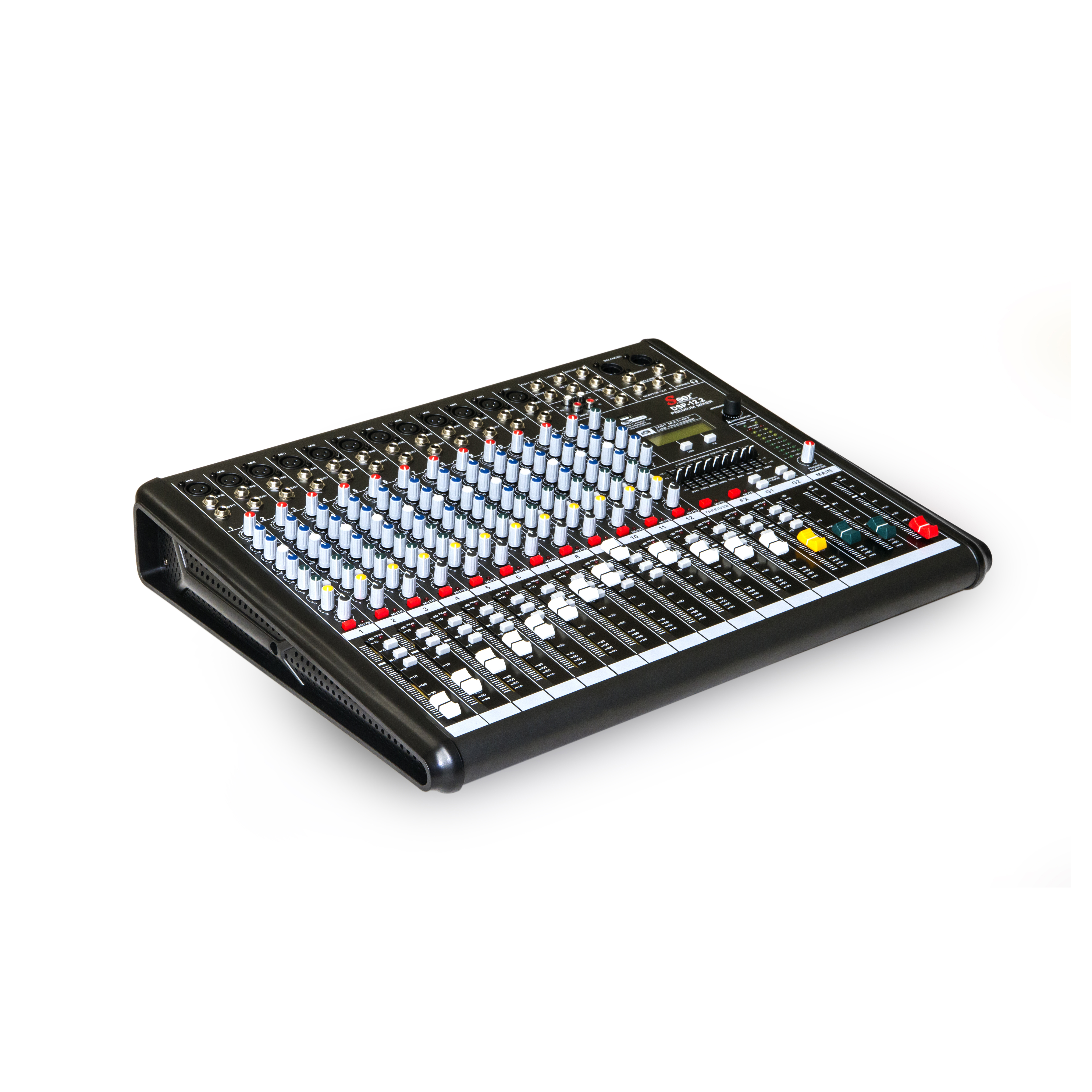

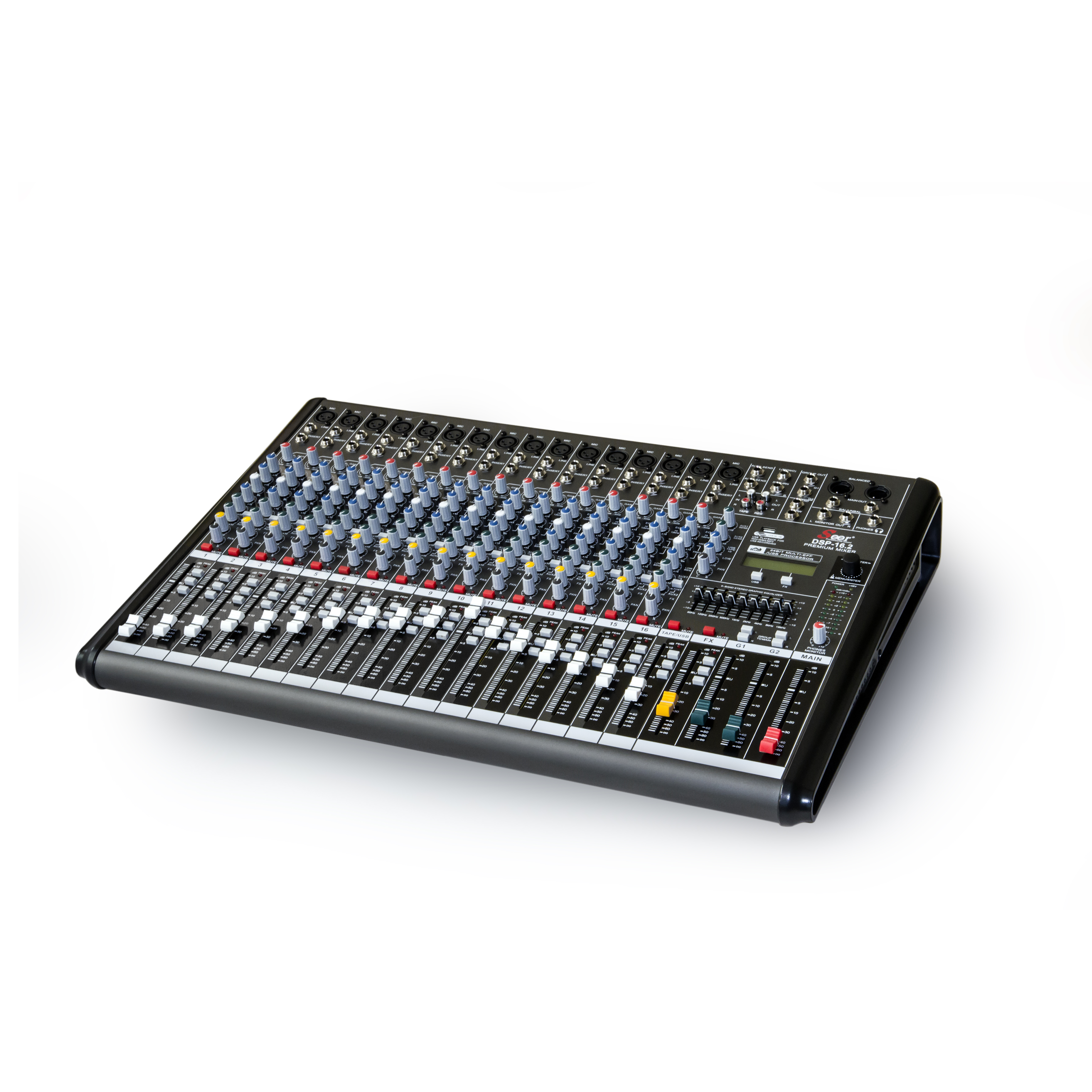

1. 8/12/16 Mono Input channel
2. Group Out + 1 Stereo Output
3. Auxiliary sends + 1 Stereo return
4. Responsive 3 band EQ
5. 9 brand EQ on main output
6. 256/24-Bit DSP multi-effect processor, 48KHz sampling frequency, 14 effect mode, more than 100 kinds parameter memory.
7. +48V Phantom Power, separate switched for each Mic-line
8. Imported potentiometer, smooth pushing and convenient operation
9. Developed using SMT technology, stable and dependable quality, with LCD display and easy operation.
Maximum Levels
Mic inc
+22dBu
All Other inputs
+22dBu
Main Mix TRS out and XLR out
+28dBu
All other outputs
+22dBu
Total harmonic distortion(THD)
(1 kHz 35dB gain,20Hz-20kHz bandwidth)
Mic in to insert out
＜0.005%
Noise:
-86 dBu
Signal to Noise Ratio
82db
80db
80db
Equivalent input noise(EIN)
150 ohm termination:
-129.5dBu 20Hz-20kHz
Attenuation(Crosstalk)
Channel Mute switch engaged:
-82 dBu
Channel Gain knob down:
-82 dBu
Frequency response
20Hz-40Khz +0dB/-1dB
20Hz-60Khz +0dB/-3Db
CMRR
Impedances
1kHz better than -70dB
Mic in :
2.5kilohms
Channel insert return:
2.5kilohms
All other inputs:
10kilohms or greater
Tape out:
1.1kilohms
All other outputs:
120 ohms
EQ
High Shelving :
±15db@12kHz
Mid sweep:
±15db@240-6kHz
Mid Shelving:
±15db
Low shelving:
±15db@80Hz
